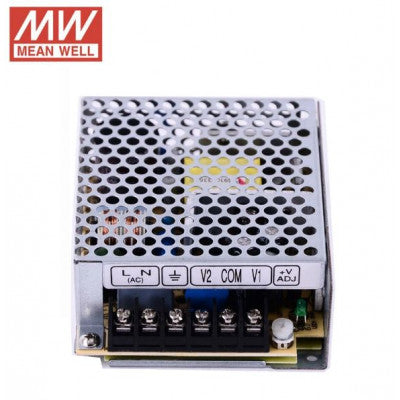

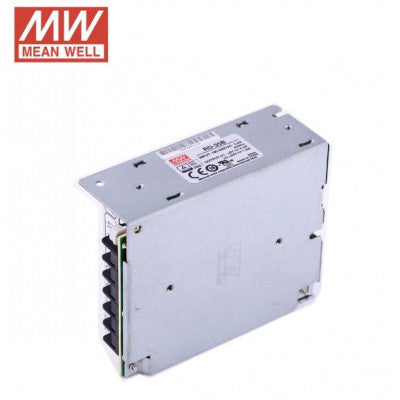

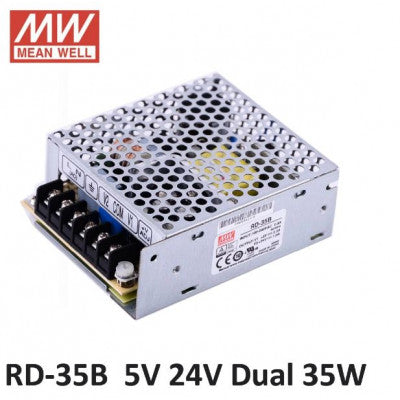

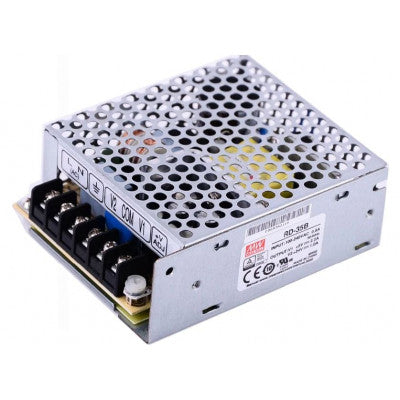

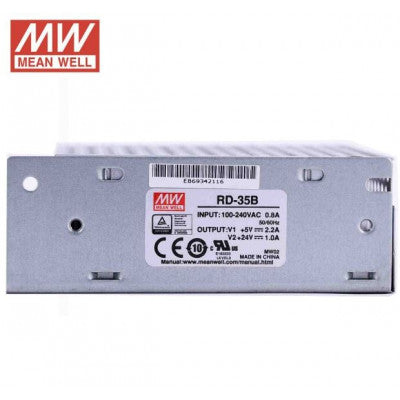

MEAN WELL Dual Output Enclosed Power Supply
Reliable 35W power supply with 3-year warranty
- Output Voltage-Channel 1: 5 VDC
- Output Voltage-Channel 2: 24 VDC
- Output Current-Channel 1: 2.2A
- Output Current-Channel 2: 1A
- Number of Outputs: 2
- Output Power: 35 W
- Type: Enclosed Type Dual Output
- Features: Standard Series RD (Reliable)
- Mechanical Form: Enclosed
- Warranty: 3 Years Warranty
- IP Level: Non-Waterproof
- Input Voltage: 88 VAC to 264 VAC, 125 VDC to 373 VDC
Top Features:
- Universal AC input
- Short circuit, overload, and overvoltage protections
- LED power indicator
- High efficiency and reliability
The MEAN WELL Dual Output Enclosed Power Supply is a reliable 35W power supply with a 3-year warranty. It features an output voltage of 5VDC for Channel 1 and 24VDC for Channel 2, with output currents of 2.2A and 1A respectively. The power supply is enclosed and designed for standard use in commercial settings.
It has a wide input voltage range of 88 VAC to 264 VAC and 125 VDC to 373 VDC, making it versatile for various applications. The power supply also offers protections against short circuits, overloads, and overvoltage, ensuring the safety of your devices.
With a high operating temperature of up to 70°C and 3 years of warranty, this MEAN WELL power supply is a durable and efficient choice for your power needs.
- Manufacturer: MEAN WELL
- Operating Temperature: -30 to +70 DEG CEL.
- Voltage Adjustable Range: 4.75 ~ 5.5V
- Frequency: 47 to 63Hz
- Protection: Short circuit / Overload / Overvoltage
- Industry: Commercial
- Mounting Style: Chassis
- Length: 99 mm
- Width: 82 mm
- Height: 36 mm
- Approvals: EN60950-1
- Series: RD-35
- Model: RD-35B
- Brand: MEAN WELL
- Compliance: EN60950-1
- Unit Weight: 300 g
Related Documents:
- RD-35 Datasheet
- RD-35B Test Report
- CE Certificate (RD-35)
- UL Certificate (RD-35)
- CB Certificate (RD-35)
- TUV Certificate (RD-35)
- EMC Certificate (RD-35)
* Images are for illustration only; actual product may vary.
