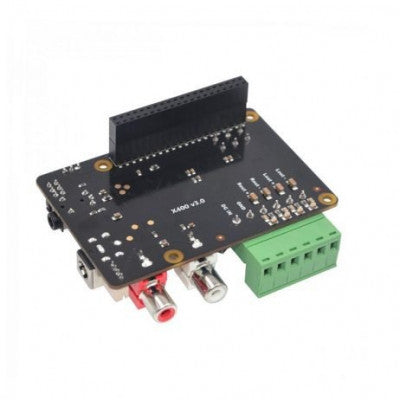

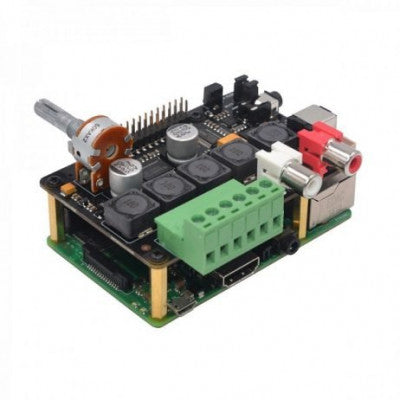

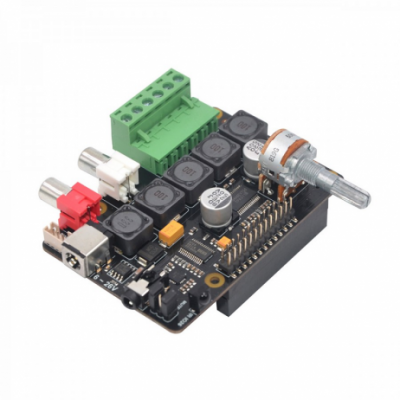

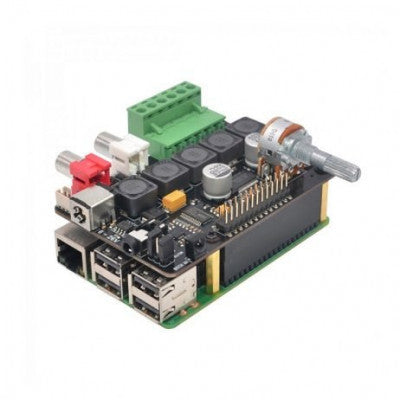

Raspberry Pi X400 Multifunctional Expansion Board Raspberry Pi 3 Model B+(Plus)/3B Music Player
Updated to V3.0 Version with Improved Performance
- Operating Voltage: 6 ~ 26 VDC
- GPIO Used: LRCK IO19, BCK IO18, DATA IO21, IR IO26, AMP mute IO22
- Analog Audio Output Level: 2V RMS
- Headphone Max Output Power: 142mW at 16?
- Amplifier Max Output Power: 230W at 8 BTL Load at 24Vdc
- Resolution/Sampling Rate: up to 24bit / 192KHz (Raspberry Pi I2S)
- Length (mm): 85
- Width (mm): 55
- Height (mm): 20
- Weight (gm): 78
Top Features:
- Full-HD audio up to 24-bit/192kHz playback
- Audiophile TI Burr-Brown 32-bit/384kHz DAC
- Class-leading audio; 112db SNR, THD of 0.0019%
- Built-in High-quality Class-D stereo audio amplifier
The Raspberry Pi X400 Multifunctional Expansion Board V3.0 offers improved performance over the previous version. It features a high-quality DAC, audio amplifier, and headphone amplifier for exceptional audio output. The board is designed to drive speakers and headphones efficiently, providing a superior listening experience.
With onboard RCA connectors, 3.5mm stereo headphone jack, and speaker & power screw terminals, the X400 V3.0 offers versatile connectivity options. The board also includes an IR sensor and a 4-pin PH2.0 connector for an external power switch.
Powered by Texas Instruments components, including a low-noise voltage regulator and high-efficiency DC converter, the X400 V3.0 ensures stable power delivery to the Raspberry Pi. The genuine ALPS potentiometer allows for smooth volume adjustment, enhancing user control.
Enhance your audio projects with the Raspberry Pi X400 Multifunctional Expansion Board V3.0, delivering high-fidelity sound and versatile connectivity options.
* Images are for illustration only; actual product may vary.
