PV15-29B24LA6 Series Regulated DC-DC Converter
Regulated DC-DC converter with ultra-wide input range and high safety features.
- I/p Voltage range: Ultra wide input voltage range: 200 – 1500VDC
- Nominal voltage: Ultra wide input voltage range: 200 – 1500VDC
- O/p voltage: 24V
- O/p current: 625mA
- Wattage: 15W
- Isolation: 4000VAC
- Package: Din-Rail mounting
Top Features:
- Ultra wide input voltage range: 200 – 1500VDC
- Industrial grade operating temperature: -25°C to +70°C
- 4000VAC high isolation voltage
- High efficiency, low ripple & noise
The PV15-29B24LA6 series is a regulated DC-DC converter with an ultra-wide DC input range. It features high efficiency, high reliability, high insulation, and a high level of safety protection. This type of power supply is widely used in renewable energy industries such as photovoltaic, power generation, energy storage, inverters, and high voltage DC conversions. The converters provide multiple protection features and guarantee stable and safe operating environments even under abnormal working conditions.

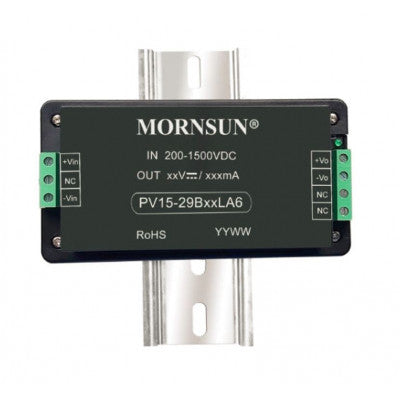

This package includes: 1 x PV15-29B24LA6 Mornsun 200-1500V to 24V DC-DC Converter 15W Power Supply Module - DIN Rail Mounting Package.
Images are for illustration only; actual product may vary.
