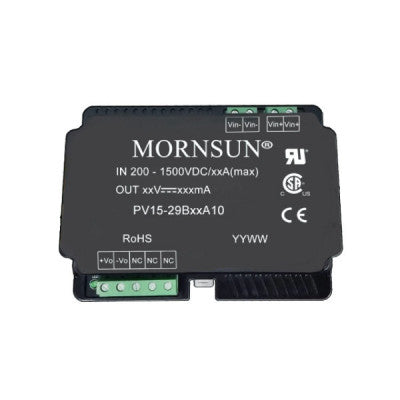

PV15-29B24A10 Mornsun 200-1500V to 24V DC-DC Converter 15W Power Supply Module
Industrial-grade DC-DC converter with wide input voltage range and high isolation
- I/p Voltage range: Ultra wide input voltage range: 200 – 1500VDC
- Nominal voltage: Ultra wide input voltage range: 200 – 1500VDC
- O/p voltage: 24V
- O/p current: 625mA
- Wattage: 15W
- Isolation: 4000vac
- Package: Din-Rail mounting
- Package Includes: 1 x PV15-29B24A10 Mornsun 200-1500V to 24V DC-DC Converter 15W Power Supply Module - DIN Rail Mounting Package
Top Features:
- Ultra wide input voltage range: 200-1500VDC
- Industrial grade operating temperature: -40C to +70C
- 4000VAC high isolation voltage
- Input under-voltage protection, reverse input voltage protection
This industrial-grade DC-DC converter is designed to operate in a wide input voltage range from 200V to 1500VDC. It has a high isolation voltage of 4000VAC, ensuring safe and reliable operation. The converter offers an output voltage of 24V with a current rating of 625mA, providing a wattage of 15W. It comes with various protection features including input under-voltage protection, reverse input voltage protection, output short circuit protection, over-current protection, and over-voltage protection.
The PV15-29B24A10 converter is UL 1741, CSA-C22.2 No.107.1, and EN62109 safety approved, guaranteeing compliance with industry standards. It can be mounted on a PCB or DIN-Rail for convenient installation in different setups.
