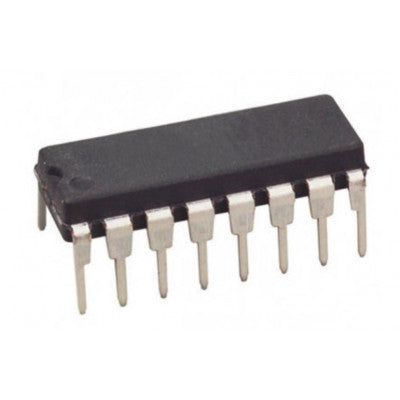

PS2501-4 Optically Coupled Isolators
Optically coupled isolators with high isolation voltage and high-speed switching.
- Spec name: PS2501-4
- Spec name: GaAs light emitting diode and NPN silicon phototransistor
- Spec name: Package Type: DIP (Dual In-line Package) for PS2501-4, lead bending type (Gull-wing) for PS2501L-4
- Spec name: Isolation Voltage: 5000 Vr.m.s.
- Spec name: Collector-emitter voltage: 80 V
- Spec name: Forward current: 80 mA
- Spec name: Power dissipation: 120 mW
- Spec name: Reverse Voltage: 6 V
- Spec name: Storage temperature range: -55 to +150 °C
- Spec name: Operating Temperature: -55 to +100 °C
- Spec name: Peak Forward Current: 1 A
- Spec name: Collector-emitter breakdown voltage: 80 V
- Spec name: Emitter-collector voltage: 7 V
Features:
- High isolation voltage (BV = 5000 Vr.m.s.)
- High collector to emitter voltage (VCEO = 80 V)
- High-speed switching (tr = 3 µs TYP., tf = 5 µs TYP.)
- Safety standards - UL approved: File No. E72422
Application: Power supply, Telephone/FAX, FA/OA equipment, Programmable logic controller
Related Document: PS2501-4 IC Data Sheet
