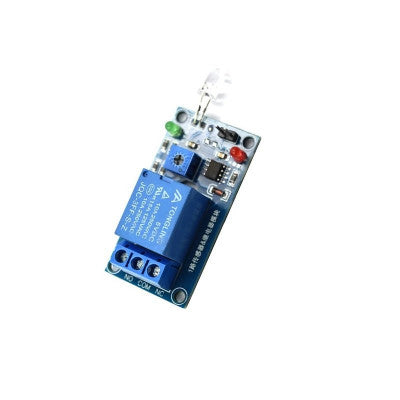

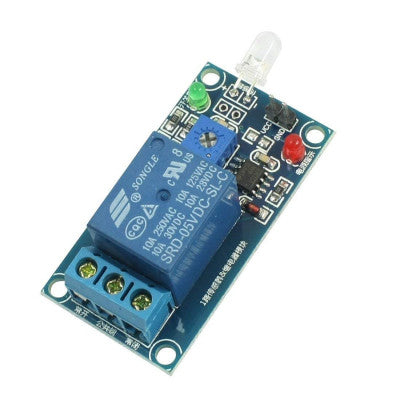

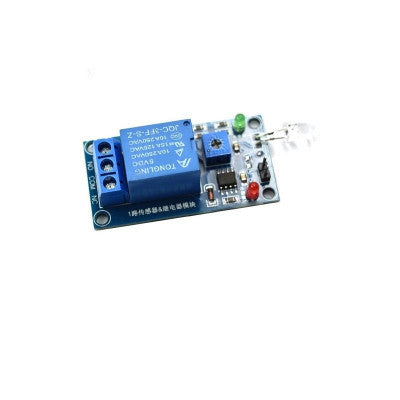

Photosensitive Diode Relay Module
Control lights based on brightness levels with this versatile relay module.
- Operating Voltage: 3.3 ~ 5 VDC
- Trigger Current: 20 mA
- Trigger Voltage: 5 VDC
- Switching Voltage (AC): 250 @ 10A
- Switching Voltage (DC): 30 @ 10A
- Operating Temperature: -40 to 80°C
- Opt. Relative Humidity: 20% - 85%
- Storage Condition: -65 to 125°C
- Length: 50 mm
- Width: 26 mm
- Height: 17 mm
- Weight: 16 gm
Key Features:
- Adjustable brightness detection
- Relay for various switch controls
- Automatically turns on lights at night
- Automatically turns off lights during the day
The Photosensitive Diode Relay Module is designed for light brightness detection and control. It features a potentiometer for adjustable brightness detection levels and a relay for various switch controls. This module can be used to automatically turn on lights at night and turn them off during the day. Compared to photosensitive resistance, this module has better directionality, making it easier to sense the direction of the light source.
Package Includes: 1 x Photosensitive Diode Relay Module
*Images are for illustration only; actual product may vary.
