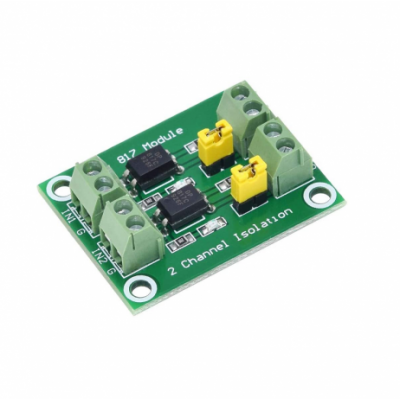

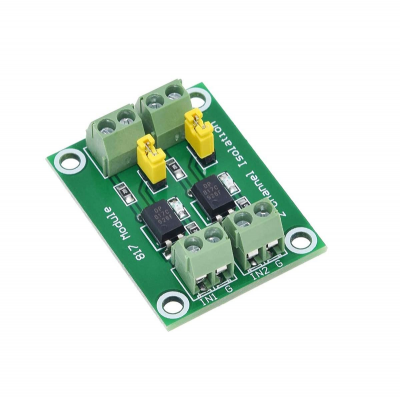

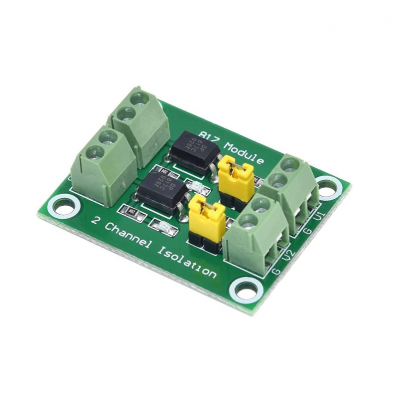

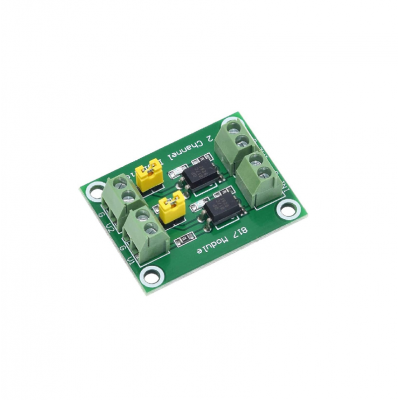

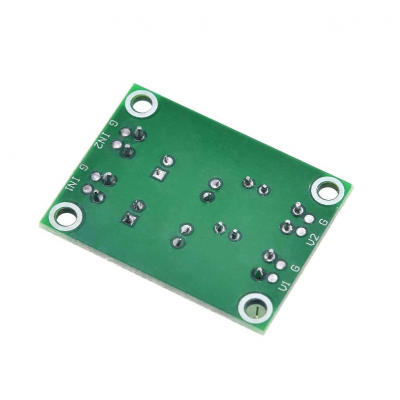

PC817 2 Channel Optocoupler Isolation Board
Optocoupler board with 2 channels for voltage isolation control.
- No. of Channels: 2
- Input Voltage (V): 3.6-24
- Output Voltage (VDC): 3.6-30
- Length (mm): 38
- Width (mm): 29
- Height (mm): 12
- Weight (gm): 5
Features:
- 2 independent channels for different voltage control
- 4-way 817 optocoupler for signal isolation
- Compatible with microcontrollers and IO ports
- Supports external transistors or MOS tubes
Onboard with 4-Channel 817 are independent, so they can achieve different voltage control at the same time. Using 4-way 817 optocoupler, to achieve the control signal and the control signal isolation, you can directly use the microcontroller or other devices IO port to achieve voltage isolation control, you can achieve a small voltage control, the control side can be an external transistor MOS tube or different voltage levels Of the device interface.
Applications:
- I/O isolation for MCUs (Micro Controller Units)
- Noise Suppression in Switching Circuits
- Signal Transmission Between Circuits of Different Potentials and Impedances
Package Includes: 1 x PC817 2 Channel Optocoupler Isolation Module
Images are for illustration only; actual product may vary.
