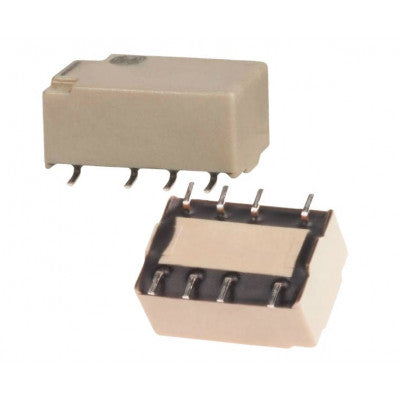

Panasonic 3V 2A DC AGQ0200S03Z 8 Pins DPDT SMD Telecom Relay
Compact flat body telecom relay with high switching capacity and surge resistance.
- Ambient Temperature Range: High: 85 °C
- Coil Current: 46.7 mA
- Coil Power: 140 m/W
- Coil Resistance: 64.2 ?
- Coil Type: Non-Latching
- Coil Voltage (DC): 3 V
- Contact Current Rating: 2 A
- Contact Arrangement: 2 Form C
Features:
- High switching capacity in a compact housing
- Compact flat body saves space
- High sensitivity: 200mW
- Surge withstand between contact and coil: 1,500V
The AGQ series Polarized Relay with compact flat body saves space. AgPd contact is used because of its good sulphide resistance and adopting low-gas moulding material. Coil assembly moulding technology which avoids generating volatile gas from coil. Due to highly efficient magnetic circuit design, leakage flux is reduced and changes in electrical characteristics from components being mounted close-together are minimized.
Outstanding surge resistance. The use of twin crossbar contacts ensures high contact reliability. Increased packaging density. Nominal operating power: 140 mW. Outstanding vibration and shock resistance. Sealed construction allows automatic washing.
Package Includes:
- 1 x Panasonic 3V 2A DC AGQ0200S03Z 8 Pins DPDT SMD Telecom Relay
* Images are for illustration only; actual product may vary.
