OP07 Precision Operational Amplifier
High-precision operational amplifier with low offset voltage and high open-loop gain
- Supply Voltage (VS): ±22 V
- Input Voltage: ±22 V
- Differential Input Voltage: ±30 V
- Output Short-Circuit Duration: Indefinite
- Storage Temperature Range: -65°C to +125°C
- Operating Temperature Range: 0°C to 70°C
- Junction Temperature: 150°C
- Lead Temperature, Soldering (60 sec): 300°C

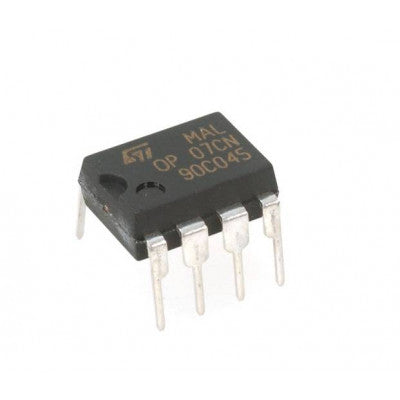

- Packaging: 8-lead PDIP, 8-lead narrow SOIC
Top Features:
- Low VOS: 75 µV (max.)
- Low VOS drift: 1.3 µV/°C (max.)
- Ultrastable vs. time: 1.5 µV/month (max.)
- Low noise: 0.6 µV p-p (max.)
The OP07 precision operational amplifier boasts very low input offset voltage (75 µV maximum for OP07E) achieved through wafer-stage trimming. This eliminates the need for external nulling. With low input bias current (±4 nA for OP07E) and high open-loop gain (200 V/mV for OP07E), it is ideal for high gain instrumentation applications.
The wide input voltage range of ±13 V minimum, combined with a high CMRR of 106 dB (OP07E) and high input impedance, ensures high accuracy in non-inverting circuit configurations. Excellent linearity and gain accuracy are maintained even at high closed-loop gains. The OP07 exhibits exceptional stability of offsets and gain over time or temperature variations.
Available in two standard performance grades, the OP07E operates over the 0°C to 70°C range, while the OP07C is specified for -40°C to +85°C. The OP07 comes in epoxy 8-lead PDIP and 8-lead narrow SOIC packages, fitting various sockets including 725, 108A/308A, 741, and AD510. The IC is also 125°C temperature-tested for reliability.
For more details or bulk pricing inquiries, contact our sales team directly at sales02@thansiv.com or call +91-8095406416.
Images are for illustration only; actual product may vary.
