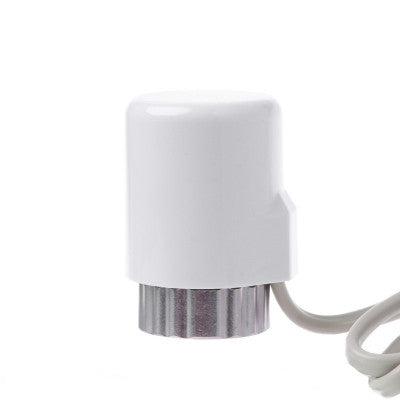

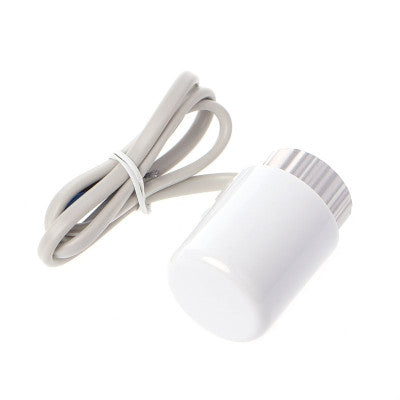

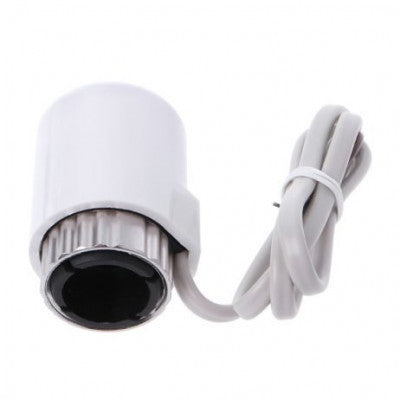

Normally Close Thermal Electric Actuator
A thermal actuator for controlling water flow in underfloor heating systems.
- Type: Normally Closed
- Material: Retardant PC
- Input Voltage (V AC): 230V 2W
- Power: 2W
- Thrust: 110N
- Route: 3mm/5mm
- Time: 3-5Min
- Connecting Size: M30x1.5mm
- Environmental Temperature: -5~60
- Waterproof Performance: IP54
- Length (mm): 65
- Diameter (mm): 40
- Weight (gm): 100
Features:
- Controls water flow through underfloor heating system
- 2-wire connection with one valve per loop
- Unique quick-lock snap action
- Red spot indicator on top
This thermal electric actuator is designed to efficiently control the water flow in underfloor heating systems. It features a normally closed configuration and is made of retardant PC material. With an input voltage of 230V and power of 2W, it provides a thrust of 110N with a route of 3mm/5mm. The actuator operates within an environmental temperature range of -5~60 and offers waterproof performance rated at IP54. Measuring 65mm in length, 40mm in diameter, and weighing 100gm, this actuator is a reliable component for underfloor heating manifolds.
Package Includes: 1 x Normally Close Thermal Actuator For Underfloor Heating Manifold
Images are for illustration only; actual product may vary.
