NX8048P050-011R

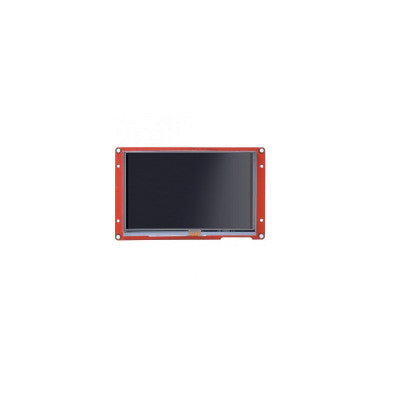

5.0 Nextion Display with Resistive Touchscreen
- Model: NX8048P050_011R
- Operating Voltage: 5 V
- Operating Current: 220 mA
- Touch type: Resistive
- Touches: > 1 million
- Backlight: LED
- Brightness: 300nit
- Serial Port Mode: 3.3V/5.0V TTL
- FLASH Memory: 120 MB
- RAM Memory: 512 KB
- Working Temperature Range (C): -20 to 70
- Length (mm): 138
- Width (mm): 85
- Height (mm): 12
- Weight (gm): 122
Features:
- 5 LCD-TFT HMI display module
- 840 x 480 screen resolution
- RGB 65K true-to-life colors
- Resistive touch panel
The Nextion NX8048P050-011R is a 5.0 Intelligent series SMART HMI Touch display with a resistive touch screen. It can be easily interfaced with any Microcontroller using just 2 wires. The built-in microcontroller controls the display, handling button clicks, text creation, image storage, and background changes. Communication with your microcontroller is done via serial communication at a 9600 baud rate. It is compatible with Arduino, Raspberry Pi, ESP8266, ESP32, PIC Microcontroller, AVR controller, ARM Microcontroller, and even basic 8051 microcontrollers.

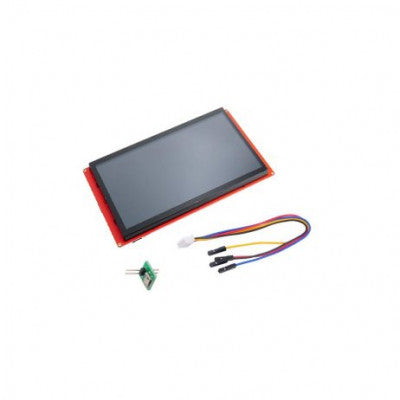

The package includes 1 x Nextion Intelligent NX8048P050_011R 5.0 HMI Resistive Touch Display. A small power supply test board and connecting wire are included to test the electrical supply.
