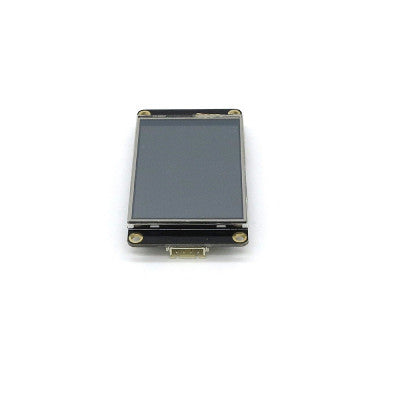

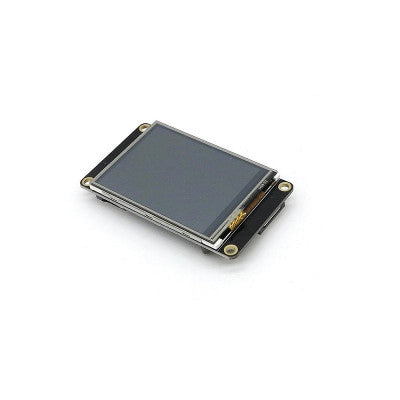

Nextion Enhanced NX3224K024 Display
A powerful 2.4 HMI TFT display with enhanced features for IoT applications.
- Model No: NX3224K024
- Display Type: NX3224K024_011R (R: Resistive touchscreen)
- Operating Voltage (VDC): 4.75 ~ 7
- Max. Operating Current (mA): 90
- Display Layout Size (L x W x H) mm: 74.4 x 42.72 x 5.8
- Net weight (gm): 25.8
- Touch Type: Resistive
- Colors: 65K (65536)
Top Features:
- Supports built-in RTC
- Supports GPIO
- SD Card interface: support max 32G Micro TF/SD card (FAT32 file format)
- Flash data storage space: 16MB
The Nextion Enhanced NX3224K024 is a powerful 2.4 HMI TFT display with 16MB Flash data storage space, 1024 bytes EEPROM, and larger RAM of 3584 bytes. It supports GPIO, allowing customers to control external devices easily. This display serves as a Seamless Human Machine Interface (HMI) solution for various applications in IoT and consumer electronics fields.
Nextion simplifies the interface design process with its hardware TFT boards and software editor. With features like built-in RTC, GPIO support, and a user-friendly editor, Nextion reduces development workloads significantly. The drag-and-drop function and WYSIWYG editor make GUI design effortless.

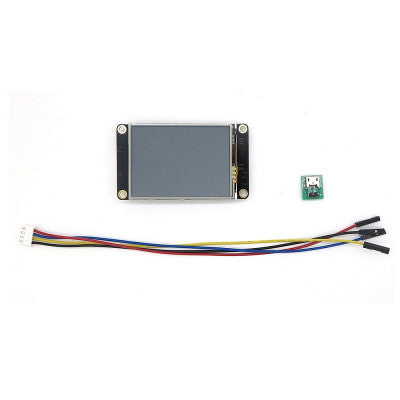

The package includes 1 2.4 Nextion Enhanced HMI Display, 1 power supply test board, and 1x 4-pin grove cable.
* Images are for illustration only; actual product may vary.
