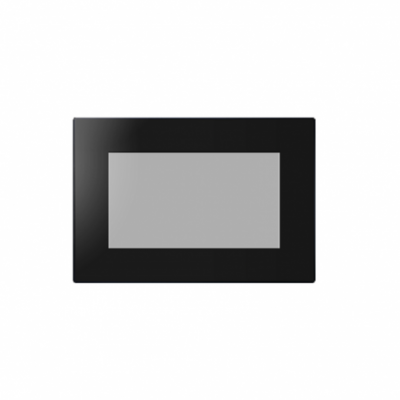

Nextion Intelligent Series HMI Display NX8048P070-011R-Y
A powerful HMI solution with advanced features for seamless project interaction.
- Nexiton Display Type: Intelligent Series
- Nexiton Model: NX8048P070-011R-Y (18.1 cm resistive touchscreen with enclosure)
- Built-in RTC support: Battery type: CR1220
- Operating Voltage: 5V-6.5V
- Operating Current: 530mA (VCC=+5V, Brightness is 100%)
Top Features:
- Advanced hardware with powerful MCU, Flash storage, and SRAM
- Audio, video, and animation play functions
- Supports transparent component and page loading effect
- Component Move and Drag functionality
Nextion is a Human Machine Interface HMI solution that combines an onboard processor and memory touch display with Nextion Editor software for HMI GUI project development. The NEXION Editor software allows quick development of the HMI GUI by drag-and-drop components like graphics, text, buttons, and sliders. ASCII text-based instructions can be used for coding how components interact on the display side. The Nextion HMI display connects to a peripheral MCU via TTL Serial (5V, TX, RX, GND) to provide event notifications that the peripheral MCU can act on. The peripheral MCU can easily update progress and status back to the Nextion display using simple ASCII text-based instructions.
The Intelligent Series products offer more powerful hardware in terms of MCU, Flash storage, and SRAM compared to the Basic Series and Enhanced Series. The addition of audio, video, and animation play functions enriches the user's project HMI interaction. The Intelligent Series supports advanced software features and functions such as transparent components, page loading effects, component Move, and Drag, among others.

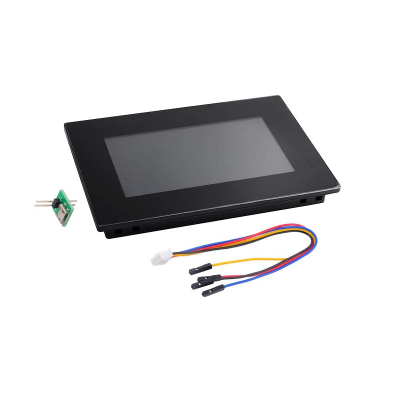

Note: The package includes a small power supply test board and connecting wire to test if the electrical supply is sufficient.
Specifications:
- Model: NX8048P070-011R-Y
- Operating Voltage (VDC): 5
- Max. Operating Current (mA): 530
- Screen With Enclosure Size: 218.1mm(L) x 150mm(W) x 22.5mm(H)
- Screen Size: 18.1cm(L) x 10.8cm(W) x 0.93cm(H)
- Resolution: 800 x 480 pixel
- Touch Type: Resistive
- Touches: > 1 million
- Backlight: LED
- Backlight Lifetime (Average): > 30,000 Hours
- Brightness: 300nit
- Weight (g): 445
* Images are for illustration only; actual product may vary.
