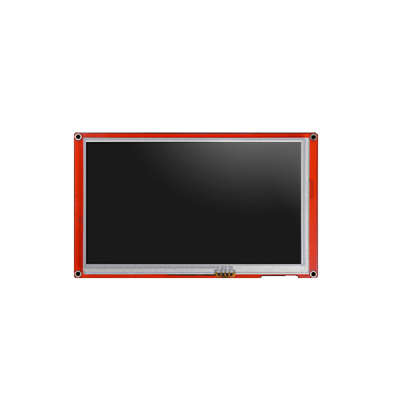

Nextion Intelligent Series HMI Display
A powerful HMI solution with advanced features for seamless project interaction.
- Nexiton Display Type: Intelligent Series
- Nexiton Model: NX8048P070-011R (18.1 cm resistive touchscreen without enclosure)
- Built-in RTC support: Battery type: CR1220
- Operating Voltage: 5V-6.5V
- Operating Current: 430mA (VCC=+5V, Brightness is 100%)
Top Features:
- Advanced hardware with powerful MCU, Flash storage, and SRAM
- Audio, video, and animation play functions
- Supports transparent component and page loading effect
- Component Move and Drag functionality
Using the NEXION Editor software, you can quickly develop the HMI GUI by drag-and-drop components (graphics, text, button, slider, etc.) and ASCII text-based instructions for coding how components interact on the display side. The Intelligent Series products have more powerful hardware in terms of MCU, Flash storage, and SRAM compared with Basic Series and Enhanced Series. The audio, video, and animation play functions enrich the user's project HMI interaction. The Intelligent Series supports advanced software features and functions such as transparent component, page loading effect, component Move, and Drag, etc.

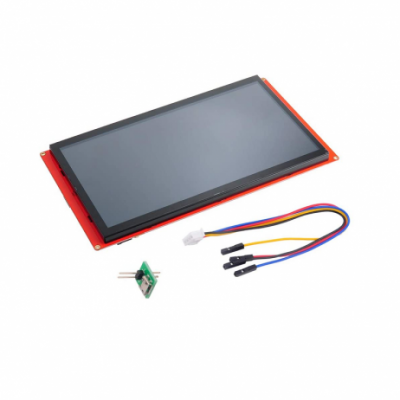

Note: The small power supply test board and connecting wire inside the package allow you to test if the electrical supply is enough or not.
Specifications:
- Model: NX8048P070-011R
- Operating Voltage (VDC): 5
- Max. Operating Current (mA): 430

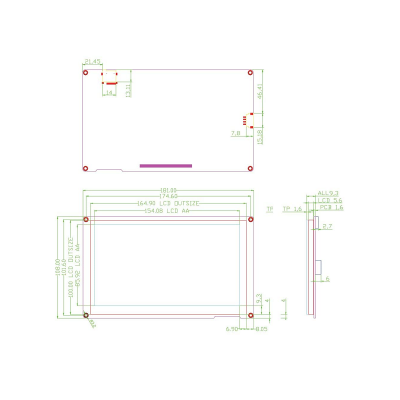

- Screen Size: 18.1cm(L) x 10.8cm(W) x 0.93cm(H)
- Resolution: 800 x 480 pixel
- Touch Type: Resistive
- Touches: > 1 million
- Backlight: LED
- Backlight Lifetime (Average): > 30,000 Hours
- Brightness: 300nit
- Weight (g): 265
Images are for illustration only; actual product may vary.
