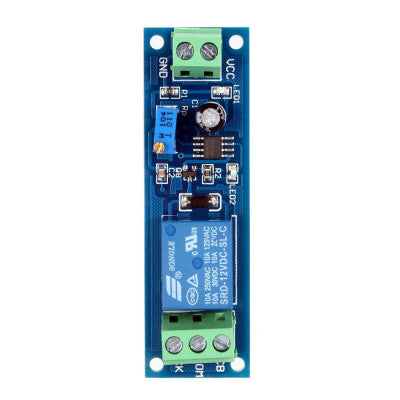

NE555 Delay Monostable Switch Module Time Delay Switch
A timer switch module based on NE555 chip for precise timing control.
- Chipset: NE555
- Trigger Voltage (VDC): 12
- Trigger Current (mA): 20
- Switching Voltage (VAC): 250 @ 10A
- Switching Voltage (VDC): 30 @ 10A
- Input Supply Voltage (VDC): 12
- Adjustable Time (s): 0 to 10
- Maximum Load (W): 220
- Fmax (KHz): 500
- Length (mm): 76
- Width (mm): 24
- Height (mm): 18
Top Features:
- Timing from microseconds to long hours
- Simple circuit design
- Precision Pulse Generation / Timing
- Adjustable Duty Cycle
This monostable generator based on the NE555 integrated circuit offers adjustable delay time from 0 to 10 seconds using a potentiometer or by changing the capacitance. It can control devices below 220V/10A and is highly stable for generating accurate time delays or oscillations. Additional terminals are provided for triggering or resetting if desired.
In the time delay mode, the time is precisely controlled by an external resistor and capacitor. For stable oscillator operation, the free-running frequency and duty cycle are accurately controlled with external resistors and a capacitor. The circuit can be triggered and reset on falling waveforms, and the output circuit can source or sink up to 200mA or drive TTL circuits.
Applications:
- Robots
- Automotive lights
- Intelligent product development
- Automation equipment
- PLC development
- Smart home
- Anti-theft alarm
- Electronic development
Package Includes: 1 x NE555 Delay Monostable Switch Module with optocoupler.
*Images are for illustration only; actual product may vary.
