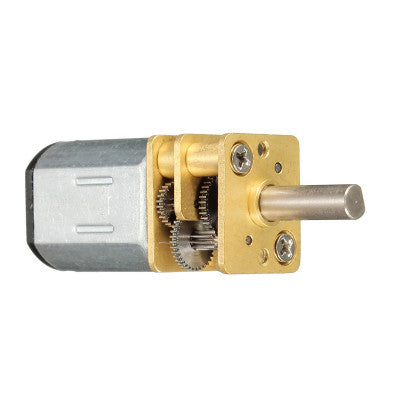

N20 6V 600 Rpm Micro Metal Gear Motor
Lightweight, high torque, low RPM motor with all-metal gears.
- Model No: N20-6V-600
- No Load Current (mA): 0.04 A
- Stall Current (A): 0.67
- Rated Torque (kg-cm): 0.14
- Stall Torque (Kg-Cm): 0.54
- Motor Body Size (Diameter) (mm): 12
- Operating Voltage (VDC): 3 ~ 6
- Rated Operating Voltage (VDC): 6
- No load Speed (RPM): 600
- Rated Speed (RPM): 600
- Shaft Type: D-type Single Side
- Shaft Diameter (mm): 3
- Weight (gm): 12
- Output Axial Length (mm): 10
- Fuselage w/o Shaft Length: 26
- Screw Size: M3
Features:
- DC Mini Metal Gear Motor, ideal for robots
- Lightweight, high torque, low RPM
- Durable, excellent stall characteristics
- Can climb hills easily
This N20 Micro Gear 6V 600 RPM DC Motor (High Torque) is a great replacement for rusty or damaged DC geared speed reduce motors in various applications like boats, cars, electric bicycles, fans, and home appliances. It is equipped with a gearbox assembly to increase motor torque and has a compact size suitable for small-scale applications.
One can easily connect this Micro Gear Motor to wheels for driving them while carrying heavy loads. The D-shaped gearbox output shaft is 9mm long and 3mm in diameter, making it versatile for different mounting options.
Package Includes:
- 1 x N20 6V 600 Rpm Micro Metal Gear Motor
*Images are for illustration only; actual product may vary.
