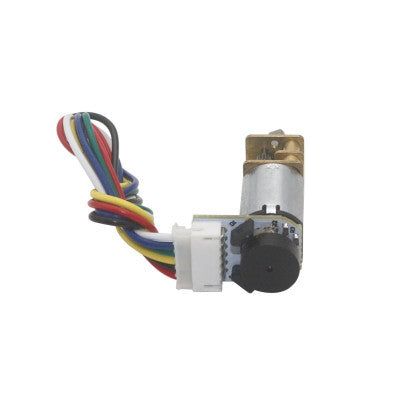

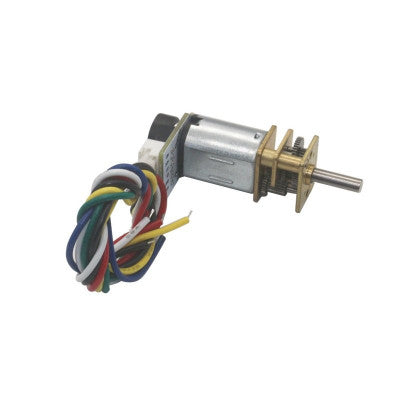

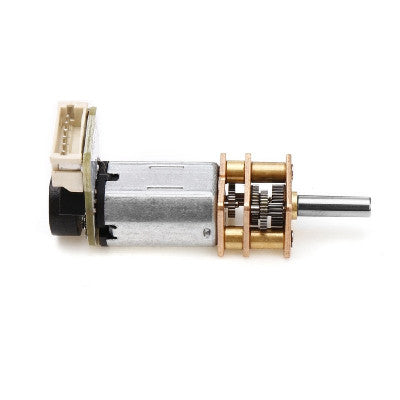

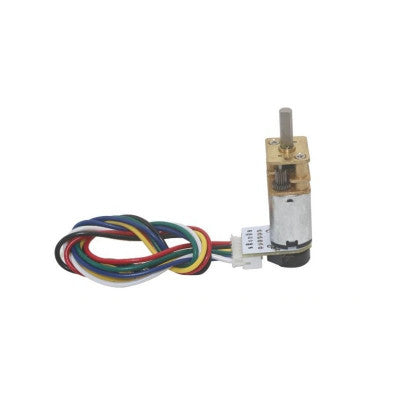

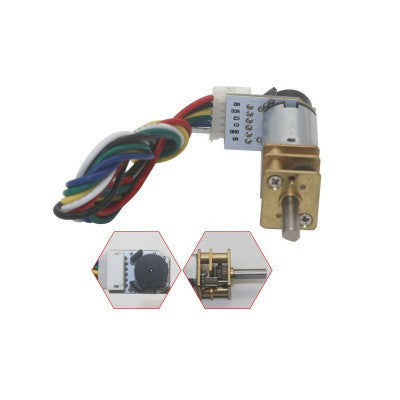

N20 3V 100RPM Micro Metal Gear Motor With Encoder
Compact and efficient motor with encoder for robotics projects.
- Model: GA12 N20
- No Load Current (mA): 10 mA
- No Load Speed (RPM): 100
- Rated Speed (RPM): 80
- Rated Current (mA): 20
- Rated Torque (kg-cm): 0.11
- Stall Current (A): 0.17
- Stall Torque (Kg-Cm): 1.0
- Gear Ratio: 50 : 1
- Shaft Type: D-type Single Side
- Shaft Diameter (mm): 3
- Weight (gm): 11
- Screw Size: M3
Top Features:
- Compact size: 15 x 12 x 10 mm
- High torque and low RPM
- Durable construction
- Easy wheel mounting on output shaft
These N20 3V 100RPM Micro Metal Gear Motors with Encoder are designed for optimal performance at 3V. They can operate within a voltage range, starting from as low as 0.5V. The motors come in various gear ratios, allowing flexibility in design changes without altering physical dimensions.
The wiring instructions are as follows: Red for motor power, Black for encoded power supply (VCC), Yellow and Green for signal feedback, Blue for encoded power (GND), and White for motor power.
The package includes 1 x N20 3V 100RPM Micro Metal Gear Motor With Encoder and 1 x Connector (14 cm).
*Images are for illustration only; actual product may vary.
