MY1016Z2 24V 250W Motor with E-Bike Combo Kit
Complete set for e-Bike enthusiasts
- Model: MY1016Z2
- No Load RPM: 3300
- No Load Current: <2.2 Amps
- Rated Wattage: 250W (0.33 Horsepower)
- Rated Load RPM: 400
- Torque (NM): 22
- Rated Current: 13.4 Amps
- Efficiency: 78%
- Reduction Ratio: 9.78:1
- Chain Size: Pitch 0.5in; Roller Diameter 0.3in; Roller Width 0.16in;
- Rated Speed (RPM): 3300
- Shipment Weight: 4.25 kg
- Shipment Dimensions: 26x17x19 cm
Top Features:
- 24 Volt DC Operation
- Permanent Magnet DC Motor
- Direct Drive (No Free Spooling)
- Suitable for Forwarding and Reverse Operations
The MY1016Z2 24V 250W Motor with E-Bike Combo Kit is the complete set of e-BikeMotor, Motor controller, Twist throttle gear, and Brake Lever. This combo made with compatibility with each other so you do not need to put efforts to choose them individually for your project. This popular reduction motor is simply the most commonly used motor for Scooters, Bikes, and quads available in the market! It is normally found in the better quality quads and scooters on the market and is classed as a mid-range combination. They are quite powerful for their small size and extremely reliable. We've sold these for so many different applications that they were never designed for, but the robustness of the build makes them just go and go and go etc!

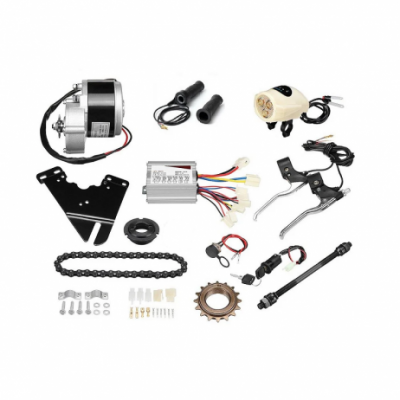

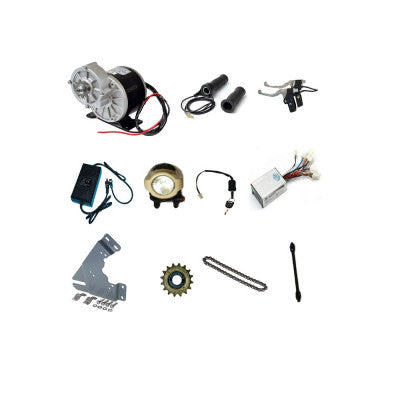

Package Includes:

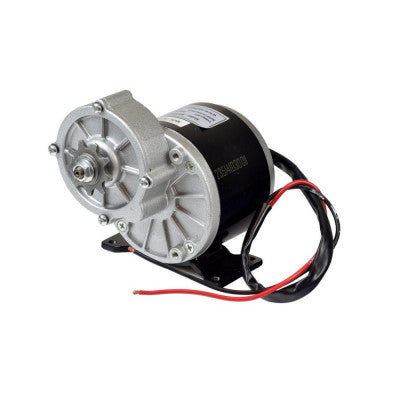

- 1 x MY1016Z2 DC 24V 250W motor

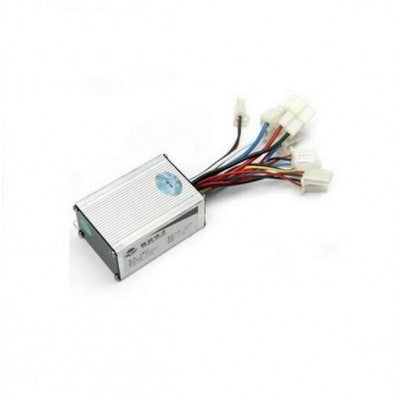

- 1 x Motor controller
- 1 x Chain
- 1 x Freewheel
- 1 x Freewheel adapter

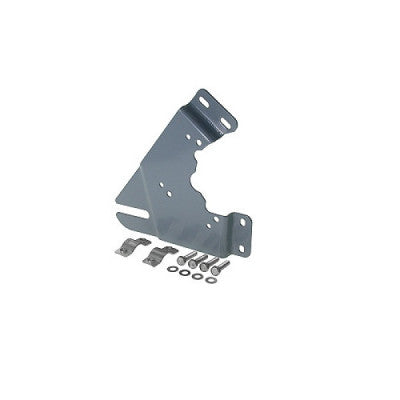

- 1 x Mounting plate with bolts

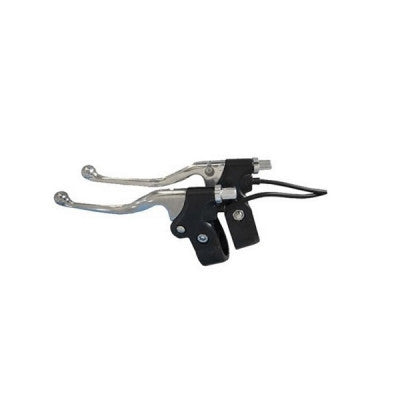

- 1 x Throttle handle & Brake lever

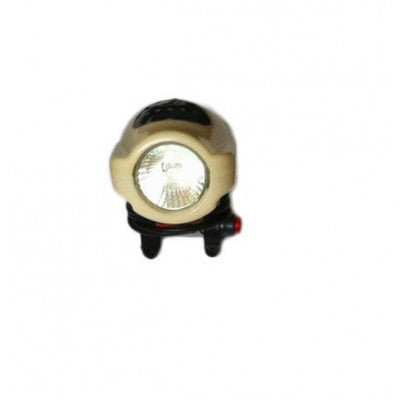

- 1 x Headlight
- 1 x Switch & key
- 1 x 18cm axis
- 1 x Power Charger (IN: AC90~240V, OUT: 24VDC/2A)
*Images are for illustration only; actual product may vary.
