MOC8104 Optocoupler
Optocoupler with improved common mode interference immunity for signal transmission.
- Forward current: 60 mA
- Power dissipation: 100 mW
- Reverse Voltage: 6 V
- Storage temperature range: -55 to +150 °C
- Operating Temperature: -55 to +100 °C
- Lead Solder Temperature: 260 for 10 sec °C
- Surge forward current: 2.5 A
- Collector emitter breakdown voltage: 30 V
Features:
- Isolation test voltage, 5300 VRMS
- No base terminal connection for improved common mode interface immunity
- Long term stability
- Industry standard dual in line package
The MOC8104 optocoupler consists of a gallium arsenide infrared emitting diode optically coupled to a silicon planar photo transistor detector in a plastic plug-in DIP-6 package. This coupling device is suitable for signal transmission between two electrically separated circuits. The potential difference between the circuits to be coupled should not exceed the maximum permissible reference voltages. The base terminal of the MOC8104 is not connected, resulting in a substantially improved common mode interference immunity.
Related Document: MOC8104 IC Data Sheet

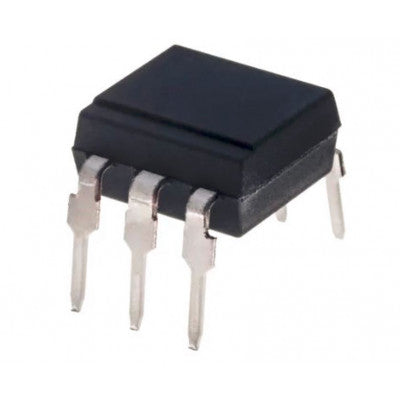

*Images are for illustration only; actual product may vary.
