MOC8102 Optocoupler
Optically isolated signal transmission component for electrically separated circuits.
- Symbol Parameter: Value
- IF Forward current: 60 mA
- PD Power dissipation: 100 mW
- VR Reverse Voltage: 6 V
- Tstg Storage temperature range: -55 to +150 °C
- TOPR Operating Temperature: -55 to +100 °C
- TSOL Lead Solder Temperature: 260 for 10 sec °C
- IFSM Surge forward current: 2.5 A
- BVCEO Collector emitter breakdown voltage: 30 V
Features:
- Isolation test voltage, 5300 VRMS
- No base terminal connection for improved common mode interface immunity
- Long term stability
- Industry standard dual in line package

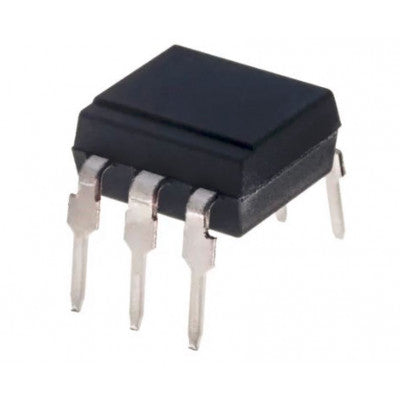

The MOC8102 optocoupler features a gallium arsenide infrared emitting diode optically coupled to a silicon planar phototransistor detector in a plastic plug-in DIP-6 package. It is designed for signal transmission between two electrically separated circuits, with a maximum permissible reference voltage limit to prevent circuit damage. The lack of connection to the base terminal results in significantly enhanced common mode interference immunity.
Compliant with RoHS Directive 2002/95/EC and WEEE 2002/96/EC standards, this optocoupler offers reliable performance in various applications. The surge forward current capability of 2.5 A and collector-emitter breakdown voltage of 30 V ensure efficient operation within specified parameters.
For more details or bulk pricing inquiries, contact our sales team: sales02@thansiv.com or call +91-8095406416.
*Images are for illustration only; actual product may vary.
