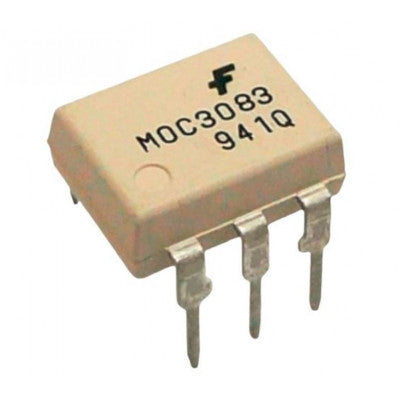

MOC3083 Zero Voltage Crossing Triac Driver
Gallium arsenide infrared emitting diodes optically coupled to monolithic silicon detectors
- Forward current: 60 mA
- Power dissipation: 120 mW
- Reverse Voltage: 6 V
- Storage temperature range: -40 to +150 °C
- Operating Temperature: -40 to +85 °C
- Lead Solder Temperature: 260 for 10 sec °C
- Peak Repetitive Surge Current: 1 A
- Off-State Output Terminal Voltage: 800 V
Features:
- Simplifies Logic Control of 115/240 Vac Power
- Zero Voltage Crossing
- dv/dt of 1500 V/µs Typical, 600 V/µs
The MOC3083 devices are ideal for use with a triac in the interface of logic systems to equipment powered from 240 Vac lines. Applications include solenoid/valve controls, temperature controls, lighting controls, E.M. contactors, static power switches, AC motor starters, AC motor drives, and solid-state relays.
For more details, refer to the MOC3083 IC Data Sheet.
*Images are for illustration only; actual product may vary.
