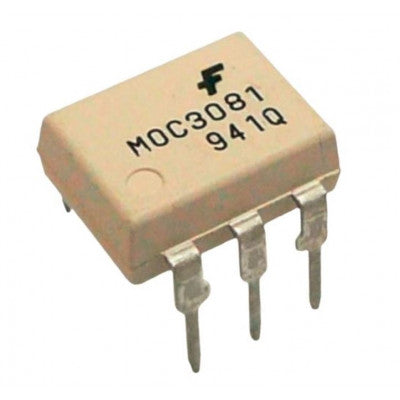

MOC3081 Infrared Emitting Diodes
Designed for Logic Control Interface with 240 Vac Lines
- Forward current: 60 mA
- Power dissipation: 120 mW
- Reverse Voltage: 6 V
- Storage temperature range: -40 to +150 °C
- Operating Temperature: -40 to +85 °C
- Lead Solder Temperature: 260 for 10 sec °C
- Peak Repetitive Surge Current: 1 A
- Off-State Output Terminal Voltage: 800 V
Top Features:
- Simplifies Logic Control of 115/240 Vac Power
- Zero Voltage Crossing
- dv/dt of 1500 V/µs Typical, 600 V/µs
The MOC3081 devices consist of gallium arsenide infrared emitting diodes optically coupled to monolithic silicon detectors performing the function of Zero Voltage Crossing bilateral triac drivers. They are designed for use with a triac in the interface of logic systems to equipment powered from 240 Vac lines, such as solid–state relays, industrial controls, motors, solenoids and consumer appliances, etc.
Applications:
- Solenoid/Valve Controls
- Temperature Controls
- Lighting Controls
- E.M. Contactors
- Static Power Switches
- AC Motor Starters
- AC Motor Drives
- Solid State Relays
Related Document: MOC3081 IC Data Sheet
