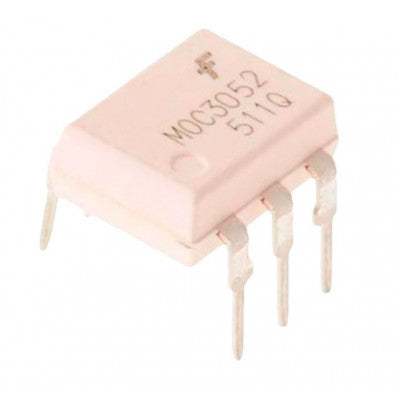

MOC3052 Optocoupler with Triac Output
Isolate low voltage logic from 115 VAC and 240 VAC lines for phase control
- Forward current: 60 mA
- Power dissipation: 100 mW
- Reverse Voltage: 6 V
- Storage temperature range: -40 to +150 °C
- Operating Temperature: -40 to +85 °C
- Lead Solder Temperature: 260 for 10 sec °C
- Peak Repetitive Surge Current: 1 A
- Off-State Output Terminal Voltage: 600 V
Features:
- Excellent IFT Stability—Low Degradation IR Emitting Diode
- 600 V Peak Blocking Voltage
- Safety and Regulatory Approvals: UL1577, 4,170 VACRMS for 1 Minute, DIN EN/IEC60747-5-5
The MOC3052 consists of a GaAs infrared emitting diode optically coupled to a non-zero-crossing silicon bilateral AC switch (triac). These devices provide random phase control of high current triacs or thyristors, ensuring stable switching performance of inductive loads. Ideal for various applications including solenoid/valve controls, lamp ballasts, static AC power switches, and more. Interface microprocessors to 115 VAC and 240 VAC peripherals with ease. The MOC3052 is also suitable for solid state relays, incandescent lamp dimmers, temperature controls, and motor controls.
For more details or bulk pricing, please contact our sales team directly at sales02@thansiv.com or call +91-8095406416.
*Images are for illustration only; actual product may vary.
