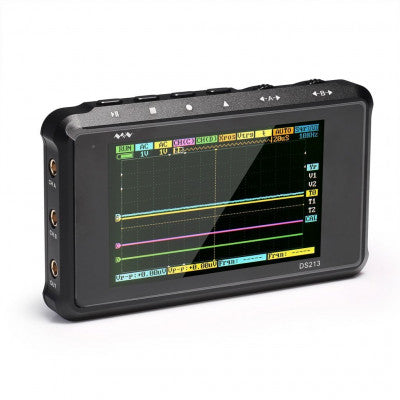

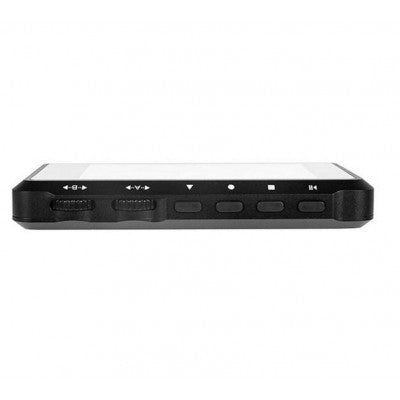

Mini Oscilloscope DS213
A portable and handheld digital storage oscilloscope with multiple trigger modes and powerful waveform analysis capabilities.
- Model: DS213
- CPU: ARM Cortex M3
- FIFO & Control: FPGA

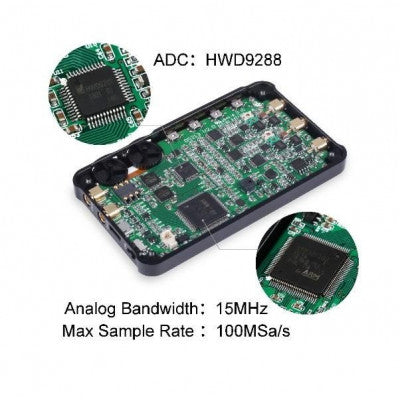

- ADC: HWD9288-100

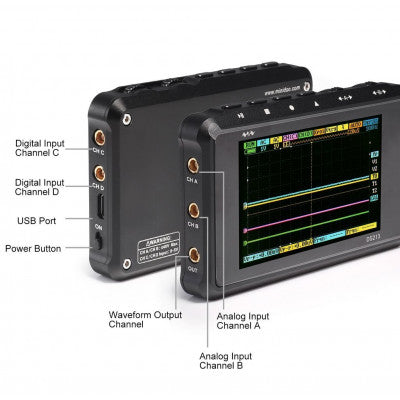

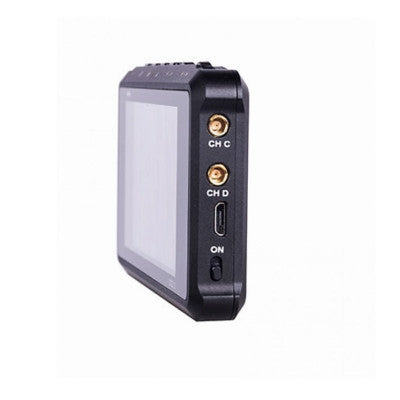

- Channel: Analog Channels: 2 [CH_A] [CH_B], Digital Channels: 2 [CH_C] [CH_D]
- Vertical Resolution: 8 bits
- Sample Memory Depth: 4 channels, 4 x 4K
- Coupling: DC, AC

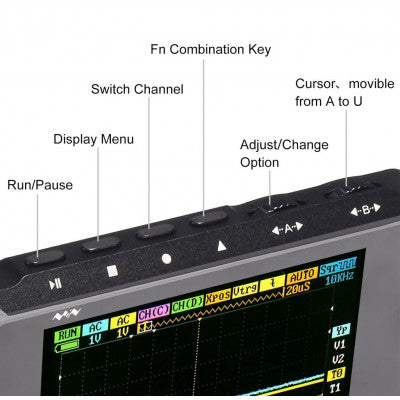

Features:

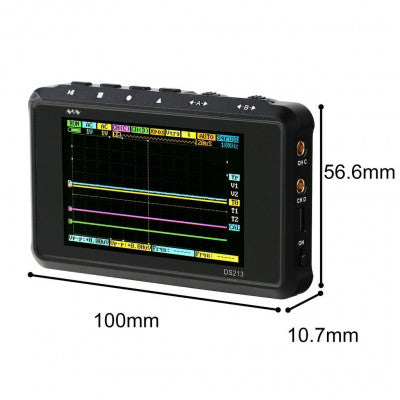

- Mini size, lightweight, portable
- Charging with Micro USB port
- Waveform storage for clearer analysis
- Multiple trigger modes for versatile use

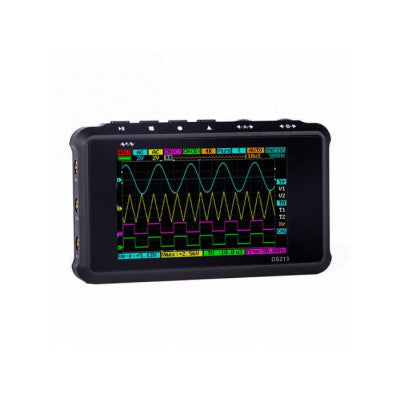

DS213 is a 5-track, 4-wave line digital storage oscilloscope based on ARM Cortex M3 core. It uses FPGA to manage external ADCs control and data cache mode. The oscilloscope provides 4 application partitions for loading and upgrading up to 4 different application firmware. It features a built-in 8MB USB flash drive for storing waveforms and upgrading system firmware. The oscilloscope code application layer is open source, allowing users to develop firmware according to their needs.
Operation Channel: INV [CH_A], INV [CH_B], [CH_A]+[CH_B], [CH_A]-[CH_B], [CH_C]&[CH_D], [CH_C] | [CH_D]
Vertical Sensitivity: 10mV-10V/div (1-2-5 STEP) (using X1 probe), 100mV-100V/div (1-2-5 STEP) (using X10 probe)
Max Input Voltage: 40Vpp (using X1 probe), 400Vpp (using X10 probe)
Trigger Types: Ascend/Descend Edge Trigger Mode, Positive/Negative Pulse Trigger, Logic Trigger

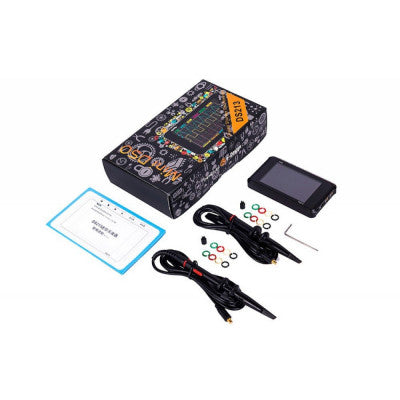

Package Includes:
- 1 x Mini Oscilloscope DS213
- 1 x X10 Probe Analyzer
- 1 x X1 Probe Analyzer
- 1 x Safety Instructions
- 1 x Hex Key
* Images are for illustration only; actual product may vary.
