MCX Connectors
Industry-standard connectors for various applications
- Brand: ElecBee
- Orientation: Straight
- Gender: Female
- Mounting Type: PCB Mount
- Termination Style: Solder Type
- Mounting Feature: Through Hole
- Function: Other
- Polarity: Standard
- Body Material: Copper Alloy
- Body Plating: Gold Plating
- Impedance: 50 ohms
- Shield Termination: NA
Top Features:
- 30% smaller than SMB, lighter
- Snap-on Interface for quick installation
- High cost-effective with excellent broadband performance
- High Quality with 30 days 100% Money back
These connectors are designed to terminate to industry-standard 50 ohm and 75-ohm cables with longer life, perfect designs, and durable industry-grade standards and finish.
Main Application of MCX Connectors:
- Consumer Electronics: GPS, HDTV, Wireless Internet TV and Audio, smartphone antenna port
- Aerospace and Defense: GPS and Hand-held Device
- Medical: Telemetry
- Telecommunications: GPS tracking, positioning and navigation devices, Telecommunications networks, Wireless Base Station, Wireless-LAN
- Data/Communications: Wireless-LAN, Wireless-PAN(Bluetooth), Wireless-WAN
- Industrial: Machine to machine communications
Electrical Characteristics:
- Impedance: 50 ohm
- Frequency Range: 0~6 Ghz
- VSWR: Straight type 1.3max / R/A type 1.5max
- Dielectric Withstanding Voltage: 1000 V rms
- Working Voltage: 335 V rms
- Center Contact Resistance: 5.0 m (Milliohms max.)
- Outer Contact Resistance: 1.0 m (Milliohms max.)
- Insulation Resistance: 1000 m
Mechanical Characteristics:
- Coupling: Snap-on/Snap-off
- Contact Retention: 4 lbs min.
- Mating Durability: 500 cycles (For Beryllium Copper Contact)
Environmental Characteristics:
- Environmental Characteristics: Teflon -65C ~ +155C
- Vibration: MIL-STD-202 Meth.204
- Corrosion Resistance: MIL-STD-202 Meth. 101
Package Includes:

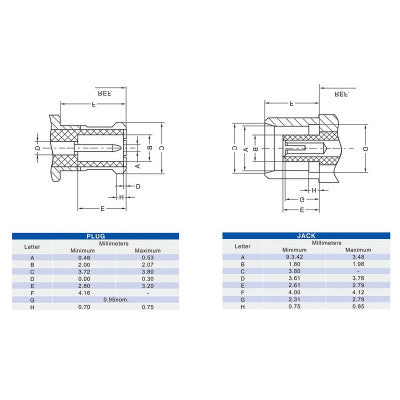

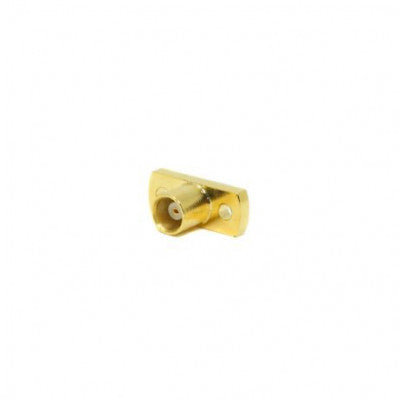

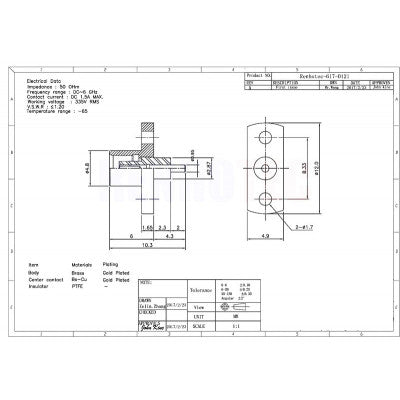

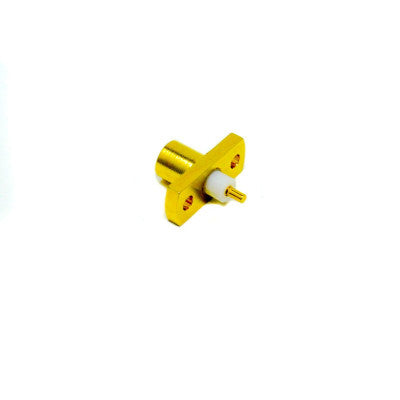

- 1 x MCX Connector 2 Hole Flange Straight Female for Panel Mount
