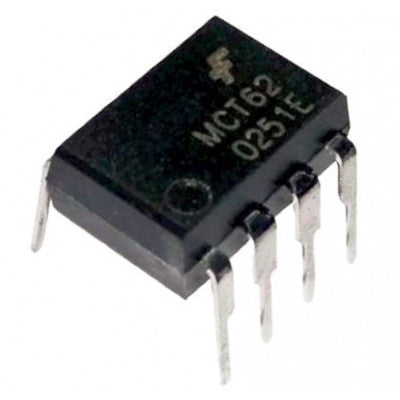

MCT62 Optocouplers
Two-channel optocouplers for density applications
- IF: 60 mA
- PD: 100 mW
- VR: 3 V
- Tstg: -55 to +150 °C
- TOPR: -55 to +150 °C
- TSOL: 260 for 10 sec °C
- IF(pk): 3 A
- IC: 30 mA
Features:
- Two isolated channels per package
- Two packages fit into a 16 lead DIP socket
- Choice of three current transfer ratios
- U.L. recognized File E90700
Applications:
- AC Line/Digital Logic – Isolate high voltage transients
- Digital Logic/Digital Logic – Eliminate spurious grounds
- Digital Logic/AC Triac Control – Isolate high voltage transients
- Twisted pair line receiver – Eliminate ground loop feedthrough
- Telephone/Telegraph line receiver – Isolate high voltage transients
- High Frequency Power Supply Feedback Control – Maintain floating grounds and transients
- Relay contact monitor – Isolate floating grounds and transients
- Power supply monitor – Isolate transients
Related Document: MCT62 IC Data Sheet
