MCTE Industry Standard Single Channel Photo Transistor
An industry standard single channel photo transistor with high isolation performance.
- Forward current: 60 mA
- Power dissipation: 150 mW
- Reverse Voltage: 6 V
- Storage temperature range: -55 to +150 °C
- Operating Temperature: -55 to +150 °C
- Lead Solder Temperature: 260 for 10 sec °C
- Surge current: 2.5 A
- Collector-emitter breakdown voltage: 70 V
Top Features:
- Interfaces with common logic families
- Low input-output coupling capacitance (< 0.5 pF)

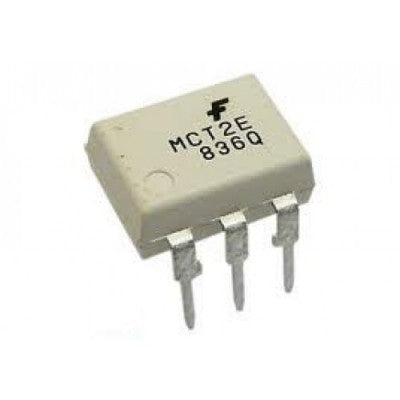

- Dual-in-line 6-pin package
- High 5300 VRMS isolation test voltage
Each optocoupler in the MCTE series consists of a gallium arsenide infrared LED and a silicon NPN photo transistor. The devices are UL listed for 5300 VRMS isolation test voltage and comply with double molding isolation manufacturing process for high isolation performance. The optocouplers are suitable for various applications such as AC mains detection, reed relay driving, and switch-mode power supply feedback.
Option 1 allows compliance to DIN EN 60747-5-2(VDE0884)/ DIN EN 60747-5-5 pending partial discharge isolation specification. These devices are available in lead formed configuration for surface mounting and come in tape and reel or standard tube shipping containers.
For more details or bulk pricing, reach out to our sales team directly at sales02@thansiv.com or call +91-8095406416.
Images are for illustration only; actual product may vary.
