MC3403 Quadruple Operational Amplifiers
A versatile and efficient set of amplifiers with wide supply voltage range
- Input offset voltage: 2mV to 10mV
- Temperature coefficient of input offset voltage: 10µV/°C
- Input offset current: 30nA to 50nA
- Unity-gain bandwidth: 1MHz to 1MHz
- Total supply current: 2.8mA to 7mA
- Related Document: MC3403 IC Datasheet
Top Features:
- Wide range of supply voltages: 3V to 36V
- Class AB Output Stage
- True Differential Input Stage
- Internal Frequency Compensation
The MC3403 are quadruple operational amplifiers designed for operation from a single supply over a range of voltages from 3V to 36V. They can also operate from split supplies with a difference between 3V to 36V. The common-mode input range includes the negative supply, and the output range is from the negative supply to VCC – 1.5V. These amplifiers have quiescent supply currents that are less than half of those of the µA741.
The MC3403 is characterized for operation from 0°C, making it suitable for various temperature conditions. With features such as short-circuit protection and interchangeability with Motorola MC3303, these amplifiers are versatile and reliable for a range of applications.

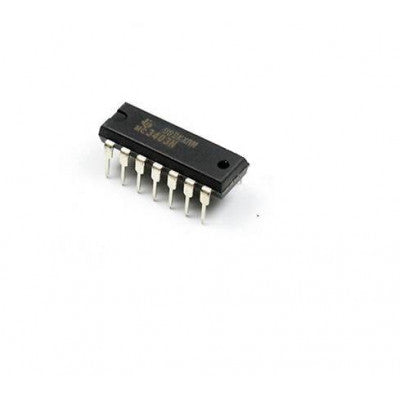

**Images are for illustration only; actual product may vary.**
