MC33078 Dual Operational Amplifier
A high-performance bipolar dual operational amplifier for quality audio and data-signal applications.
- Supply voltage (VCC+): 18 V
- Supply voltage (VCC-): -18 V
- Supply voltage (VCC+ to VCC-): 36 V
- Input voltage: VCC+ to VCC-
- Input current: ±10 mA
- Duration of output short circuit: Unlimited
- Package thermal impedance: 97 °C/W
- Operating virtual junction temperature: 150 °C
- Storage temperature range: –65 to 150 °C
Features:
- Controlled Baseline
- Low Input Offset Voltage 0.15 mV
- Low Total Harmonic Distortion 0.002%
- High Slew Rate 7 V/µs
This device offers low noise, high-gain bandwidth, and high slew rate perfect for audio and data-signal applications. Delivering low total harmonic distortion, excellent phase and gain margins, and large output voltage swing with no dead band crossover distortion.
Enhanced with symmetrical sink/source performance, it operates over a wide range of single- and dual-supply voltages. The MC33078 has a high-gain bandwidth product of 16 MHz and a high open-loop AC gain of 800 at 20 kHz.
For more details or interested in bulk pricing, reach out to our sales team directly at sales02@thansiv.com or call +91-8095406416.

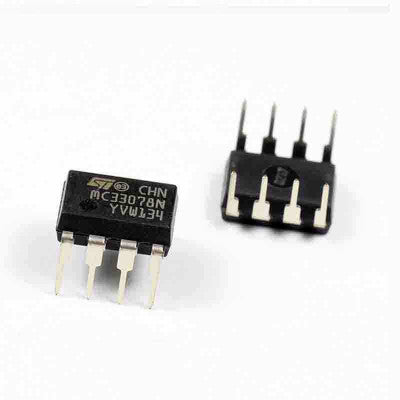

* Images are for illustration only; actual product may vary.
