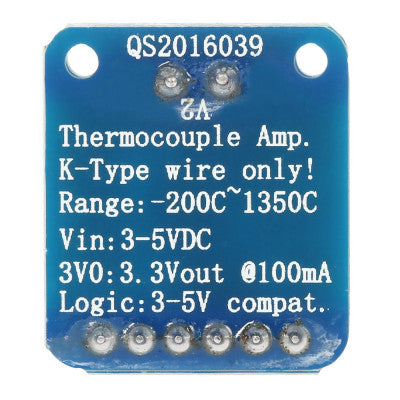

MAX31855K Thermocouple Breakout Board
A versatile breakout board for interfacing with K type thermocouples
- Operating Voltage (VDC): 3.3 ~ 5
- Accuracy: 0.25 degree temperature
- Interface: SPI
- Temperature Measuring Range (C): -200 to 1350
- Resolution: 14 bit
- Length (mm): 20
- Width (mm): 20
- Height (mm): 3.2
- Weight (gm): 1.33
Top Features:
- Works with any K type thermocouple
- -200C to +1350C output in 0.25-degree increments
- Internal temperature reading
- 3.3 to 5v power supply and logic level compliance

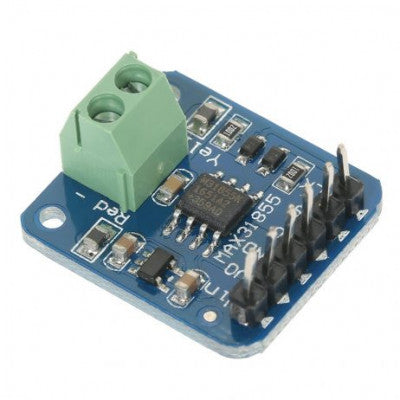

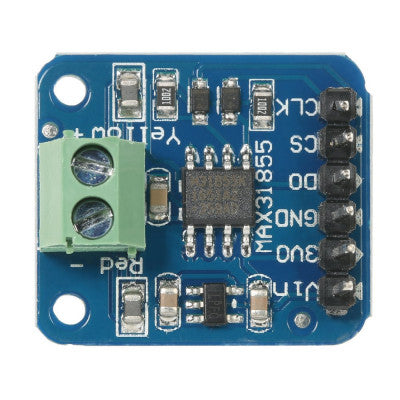

Thermocouples are very sensitive, requiring a good amplifier with a cold-compensation reference. The MAX31855K does everything for you and can be easily interfaced with any microcontroller, even one without an analog input. This breakout board has the chip itself, a 3.3V regulator with 10uF bypass capacitors, and level shifting circuitry, all assembled and tested. Comes with a 2 pin terminal block (for connecting to the thermocouple) and pin header (to plug into any breadboard or perfboard).
Package Includes: 1 x MAX31855 K-type thermocouple module
* Images are for illustration only; actual product may vary.
