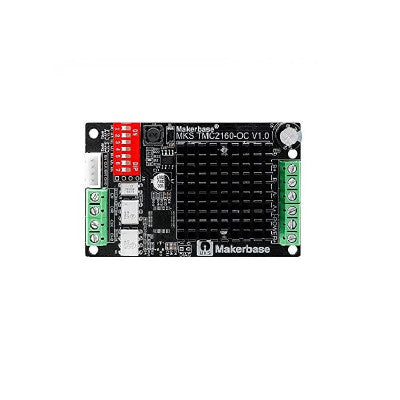

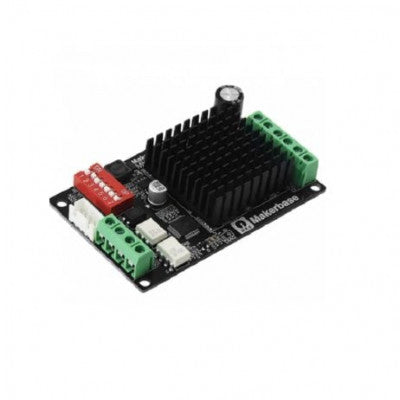

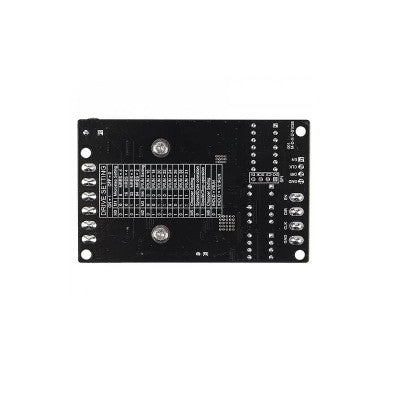

MKS TMC2160 Stepper Motor Driver
A powerful and cost-effective stepper driver with opto-isolated inputs
- Spec name: Brand new generation 4.3A Stepper driver
- Spec name: Replaces the old TB6600 Stepper Driver
- Spec name: Supports up to 64 microsteps
Top Features:
- Supports up to 64 microsteps
- Opto-isolated inputs
- Easy to modify micro step via DIP Switch
- Supports DC8-40V power input
The MKS TMC2160 is a very powerful stepper driver that offers a cost-effective solution for your stepper motor needs. It features opto-isolated inputs and supports up to 64 microsteps, providing smooth and precise motor control.
The board layout includes TMC series of drivers with a mute function, making it suitable for various applications. Setting the current max at 4.33A is easy with the switch, and the driver generates little heat, making it easy to cool down during operation.
Modifying the micro step is convenient via the DIP Switch, with a maximum support of 64 micro steps for fine-tuning your motor movements. The driver also ensures safety with optically coupled isolation signals, providing reliable operation.
Supporting DC8-40V power input, it is recommended to use less than DC35V to ensure safety and optimal performance. The package includes 1 x MakerBase MKS TMC2160-OC Stepper Motor Driver, offering a complete solution for your stepper motor control needs.
- Package Includes: 1 x MakerBase MKS TMC2160-OC Stepper Motor Driver
*Images are for illustration only; actual product may vary.
