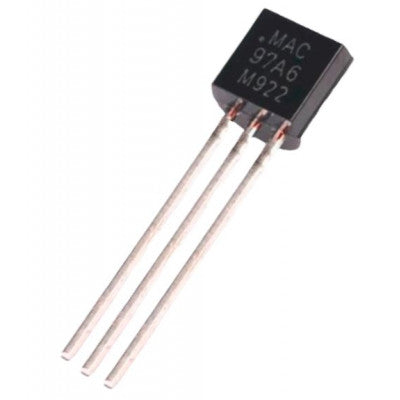

MAC97A 600V - 0.8A Triac
Injection-molded Triac with Sensitive Gate Triggering
- Maximum Operating Temperature: 125 Deg C
- Mounting Type: Through Hole
- Pin Count: 3
- Model: MAC97A6
- Voltage - Off State: 400 V
- Current - On State: Max 600 mA
- Voltage - Gate Trigger: Max 1.5 V
- Current - Gate Trigger: Max 7 mA
- Current - Hold: Max 10 mA
Top Features:
- 600V Blocking Voltage
- Injection-Molded Package
- Sensitive Gate Triggering in Four Modes
- Pb-Free and Reliable
Designed for use in solid-state relays, MPU interface, TTL logic, and other light industrial or consumer applications, the MAC97A 600V - 0.8A Triac is supplied in an inexpensive TO-92 package that can be easily adapted for automatic insertion equipment.
This triac offers sensitive gate triggering in four trigger modes for all possible combinations of trigger sources, making it versatile for various circuits. All diffused and glassivated junctions ensure maximum uniformity of parameters and reliability. These devices are Pb-free.
* Images are for illustration only; actual product may vary.
