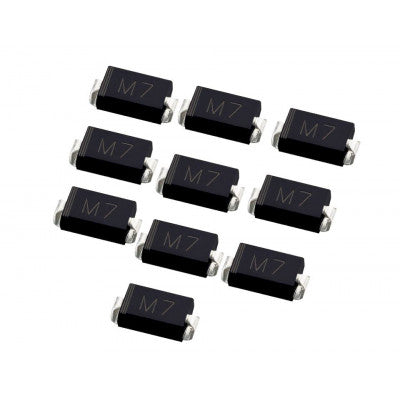

M7(1N4007) Diode
M7 Surface Mount General Rectifier with Plastic Passivation Junction
- Reverse Voltage: 50 to 1000 Volts
- Forward Current: 1.0 Ampere
- Peak Repetitive Reverse Voltage: 1000 V
- Maximum RMS Voltage: 700 V
- Maximum DC Blocking Voltage: 1000 V
- Maximum Average Forward Rectified Current: 1 A
- Non-Repetitive Peak Forward Surge Current: 30 A
- Operating Junction Temperature Range: -65 to +175 °C
- Storage Temperature Range: -65 to +175 °C
Top Features:
- Underwriters Laboratory plastic package
- Low reverse leakage
- Built-in strain relief for automated placement
- High forward surge current capability
The M7(1N4007) Diode is perfect for surface-mounted applications. This diode offers low reverse leakage and built-in strain relief, making it ideal for automated placement. It has a high forward surge current capability and is designed for high-temperature soldering guaranteed for 10 seconds at terminals. The plastic material used carries Underwriters Laboratory Classification 94V-0.
Mechanical Data:
- Case: JEDEC DO-214AC molded plastic body
- Terminals Solder plated per MIL-STD-7SO, Method
- Polarity: Color band denotes cathode end
- Mounting Position: Any
- Weight: 0.003 ounce
The M7(1N4007) Diode SMD is a reliable component with high current capability, low forward voltage drop for reduced power loss, and easy pick and place functionality for efficient assembly. It is an essential component for various electronic applications.
