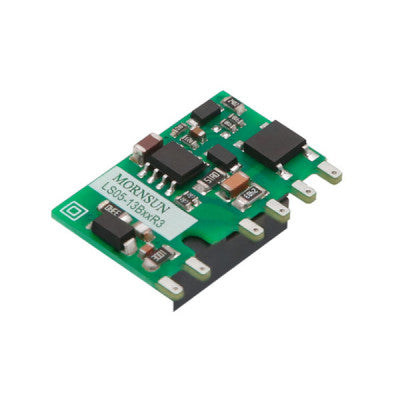

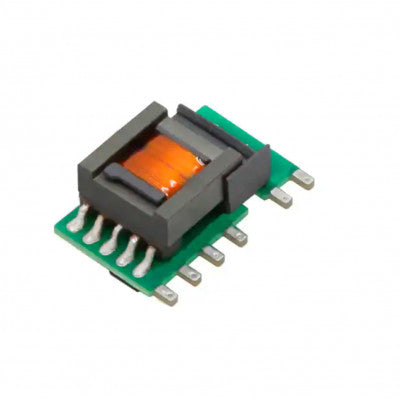

LS05-13B12R3 Mornsun 85-305V AC to 12V DC 5W AC-DC Converter Power Supply Module
Ultra-wide input voltage range, compact size, and high power density
- AC-DC Converter
- I/p Voltage range: Ultra-wide 85 – 305VAC and 70 – 430VDC input voltage range
- O/p voltage: 12V
- O/p current: 420mA
- Wattage: 5W
- Isolation: 3000VAC
- Package: SIP
- Package Includes: 1 x LS05-13B12R3 Mornsun 85-305V AC to 12V DC 5W AC-DC Converter Power Supply Module - 6-SIP Package
Top Features:
- Multi-application, flexible layout
- Compact size, high power density
- Green power technology
- Output short circuit and over-current protection
Accepting both AC and DC inputs, the LS05-13B12R3 Mornsun AC-DC Converter offers a wide input voltage range of 85 – 305VAC and 70 – 430VDC. With an output voltage of 12V and a current of 420mA, this converter provides a wattage of 5W. It is designed to meet IEC/EN61558, IEC/EN60335 standards and has IEC/EN/UL62368 safety approval.
The compact size and high power density make it suitable for various applications with a flexible layout. The green power technology ensures controllable life and adjustable costs. Additionally, the converter has a low no-load power consumption of 0.1W, enhancing energy efficiency.
Equipped with output short circuit and over-current protection, the LS05-13B12R3 Mornsun AC-DC Converter prioritizes safety. Its SIP package includes 1 x LS05-13B12R3 module for easy installation and use.
For more technical details, you can download the datasheet for the LS05-13B12R3 Mornsun AC-DC Converter.
* Images are for illustration only; actual product may vary.
