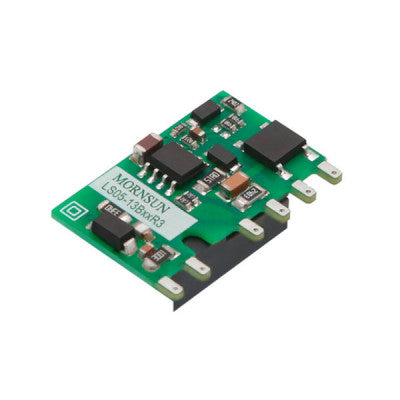

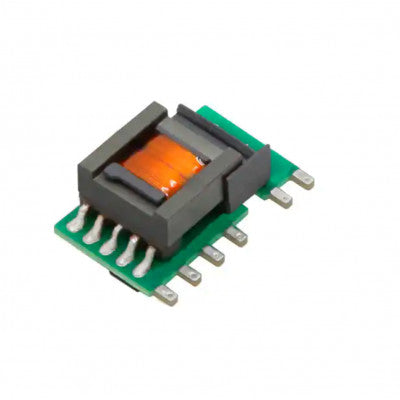

LS05-13B05R3 Mornsun 85-305V AC to 5V DC 5W AC-DC Converter Power Supply Module
Ultra-wide input voltage range, compact size, and high power density.
- AC-DC Converter
- I/p Voltage range: Ultra-wide 85 – 305VAC and 70 – 430VDC input voltage range
- O/p voltage: 5V
- O/p current: 1000mA
- Wattage: 5W
- Isolation: 3000VAC
- Package: SIP
- Package Includes: 1 x LS05-13B05R3 Mornsun 85-305V AC to 5V DC 5W AC-DC Converter Power Supply Module - 6-SIP Package
Top Features:
- Accepts AC or DC input
- Operating ambient temperature range -40 to +85
- Compact size with high power density
- Output short circuit and over-current protection
Multi-application LS05-13B05R3 Mornsun power supply module offers a flexible layout and green power solution. It has controllable life and adjustable cost, meeting IEC/EN61558, IEC/EN60335 standards, and IEC/EN/UL62368 safety approval.
* Images are for illustration only; actual product may vary.
