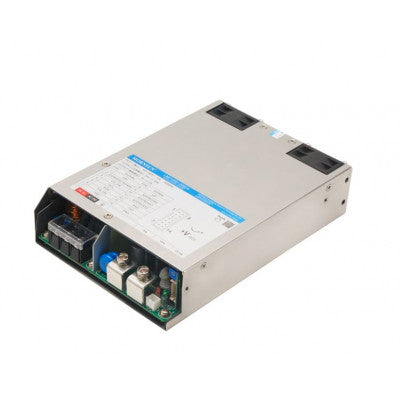

LMF1000-20B15 Series Enclosed AC-DC Switching Power Supply
Universal input, high efficiency, and excellent EMC performance
- Type: Enclosed Type Single Output
- Output Power: 970W
- Series: LMF1000-20B
- Part Number: LMF1000-20B15
- Mechanical Form: Enclosed
- IP Level: Non-Waterproof
- Output Voltage: 15V
- Output Current: 64A
Features:
- Wide range input voltage 90-264VAC or 120-370VDC
- Accepts AC or DC input (dual-use of same terminal)
- Operating ambient temperature range: -40°C to +70°C (Non-condensing)
- High reliability, efficiency up to 94%
This LMF1000-20B15 series power supply offers double or reinforced insulation, output short circuit, over-current, over-voltage protection, over-temperature protection, and supports 3+1 parallel redundancy with current sharing. It also has built-in active PFC function and operates up to 5000m altitude. Safety compliance includes IEC62368-1 and ES/EN60601-1-2:2015 Edition 4.
Widely used in industrial, LED, street light control, electricity, security, telecommunications, smart home applications, and more.
Download Datasheet: Download
* Images are for illustration only; actual product may vary.
