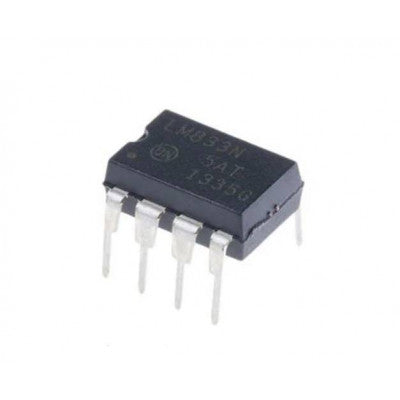

LM833 Dual General-Purpose Operational Amplifier
A standard low-cost operational amplifier with high-performance audio applications.
- Supply Voltage (VCC to VEE): 36 V
- Input Differential Voltage Range: 30 V
- Input Voltage Range: ±15 V
- Output Short Circuit Duration: Indefinite
- Operating Ambient Temperature Range: -40 to +85 °C
- Operating Junction Temperature: 150 °C
- Storage Temperature: -60 to +150 °C
- ESD Protection (Human Body Model): 600 V
- ESD Protection (Machine Model): 200 V
- Maximum Power Dissipation: 500 mW
Key Features:
- Low Voltage Noise: 4.5 nV/Hz
- High Gain Bandwidth Product: 15 MHz
- High Slew Rate: 7.0 V/s
- Low Input Offset Voltage: 0.3 mV
The LM833 is a standard low-cost monolithic dual general-purpose operational amplifier utilizing Bipolar technology. It features high frequency PNP transistors and provides low voltage noise of 4.5 nV/Hz, a gain bandwidth product of 15 MHz, and a slew rate of 7.0 V/s. It has an input offset voltage of 0.3 mV with a temperature coefficient of 2.0 V/°C.
The LM833 boasts an output stage with no dead-band crossover distortion, a large output voltage swing, excellent phase and gain margins, low open-loop high-frequency output impedance, and a symmetrical source/sink AC frequency response. It offers low distortion at 0.002% and excellent frequency stability.
Dual supply operation allows for versatile applications, and the NCV prefix caters to automotive and other applications requiring specific site and change controls. Additionally, the LM833 is Pb-Free and RoHS compliant for environmentally friendly use.
