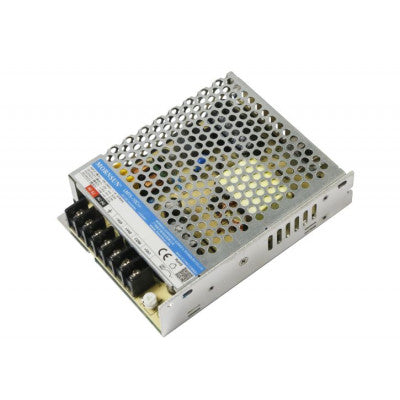

LM75-10C052412-15
Enclosed Type Triple Output Power Converter with High EMC Protection
- Type: Enclosed Type Triple Output
- Output Power: 73W
- Part Number: LM75-10C052412-15
- Mechanical Form: Enclosed
- IP Level: Non-Waterproof
- Output Voltage: 5V, 24V, 12V
- Output Current: 5A, 1.5A, 1A
Features:
- Universal 90 - 264VAC or 120 - 373VDC Input voltage
- Operating ambient temperature range: -30? to +70?
- High efficiency, reliability, and long service life
- Output short circuit, over-current, over-voltage protection
The LM75-10C052412-15 power converter is designed to independently supply 3 different loads in the system, suitable for harsh working environments with a temperature range from -30? to +70?. It meets EMC immunity requirements of IEC61000 and emission standard CISPR32/EN55032, class B without external components, ensuring excellent EMC protection. The product also complies with safety standards IEC/EN/UL62368, EN60335, GB4943.
With a variety of protection features, high-performance to low-cost ratio, and certifications, this power converter is ideal for industrial control equipment, instrumentation, smart home, and building equipment applications.
Detailed Specifications:
- Input voltage range: 90-264VAC; 120-373VDC
- Inrush current (max.): Cold start, 50A at 230VAC
- Output voltage adjustable range: 4.75-5.5V
- Working current range: 0.5-6A, 0.15-2A, 0.1-1.5A
- Efficiency at 230VAC: 84%
- Max. capacitive load: 5000µF, 1500µF, 1000µF
- Input current (max.): 0.9A at 230VAC
- Short circuit protection: Hiccup, continuous, self-recovery
For more details or bulk pricing, contact our sales team directly at sales02@thansiv.com or +91-8095406416.
*Images are for illustration only; actual product may vary.
