LM741 Series General-Purpose Operational Amplifier
Improved performance over industry standards like LM709, with overload protection and no latch-up.
- Spec name: LM741 Series General-Purpose Operational Amplifier
-
Features:
- Improved performance over LM709
- Overload protection on input and output
- No latch-up when common-mode range is exceeded
- Freedom from oscillations
- Input offset voltage: 1-5 mV
- Input offset voltage (VS = ±20 V): ±15 mV
- Input offset current: 20-200 nA
- Input resistance (VS = ±20 V): 0.3-2 MΩ
- Input voltage range: ±12-±13 V
- Output short circuit current: 25 mA
The LM741C is identical to the LM741 and LM741A, with performance ensured over a 0°C to +70°C temperature range, instead of -55°C to +125°C.
Related Document: LM741 IC Datasheet

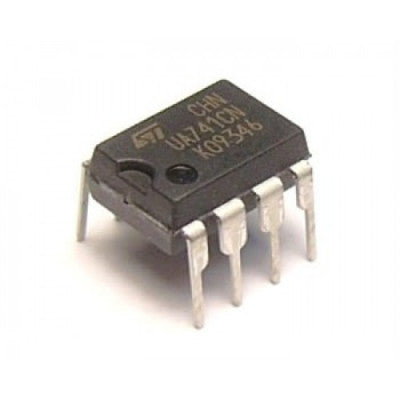

* Images are for illustration only; actual product may vary.
