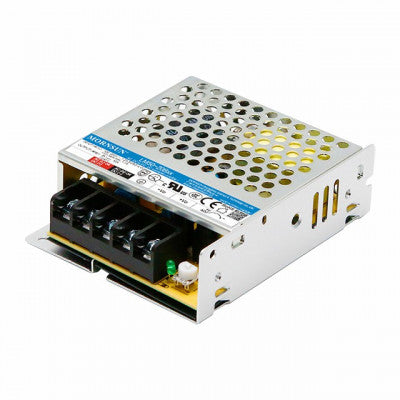

LM50-20B15 Enclosed AC-DC Switching Power Supply
Cost-effective, high efficiency power supply with universal AC/DC input
- Type: Enclosed Type Single Output
- Output Power: 51W
- Series: LM50-20B
- Part Number: LM50-20B15
- Mechanical Form: Enclosed
- IP Level: Non-Waterproof
- Output Voltage: 15V
- Output Current: 3.4A
Features:
- Universal 85 - 264VAC or 120 - 373VDC Input voltage
- Accepts AC or DC input (dual-use of same terminal)
- Operating ambient temperature range: -30°C to +70°C
- Low standby power consumption, high efficiency
LM50-20B15 is widely used in industrial, LED, street light control, security, telecommunications, smart home applications.
Detailed Specifications:
- Input voltage range: 85-264VAC; 120-373VDC
- Inrush current (max.): Cold start, 45A at 230VAC
- Output voltage adjustable range: 13.5-18V
- Efficiency at 230VAC: 88%
- Max. capacitive load: 1500µF
- Input current (max.): 0.6A at 230VAC
- Short circuit protection: Hiccup, continuous, self-recovery
- Over-current protection: 110%-150% Io, self-recovery
For more details or bulk pricing, contact our sales team at sales02@thansiv.com or +91-8095406416.
*Images are for illustration only; actual product may vary.
