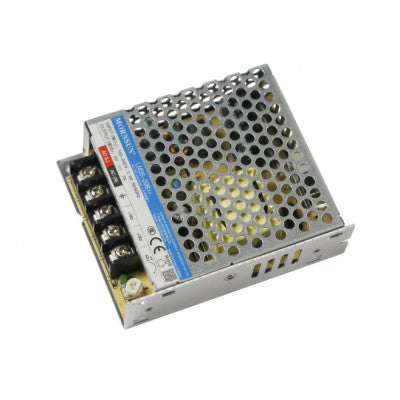

LM35-20B15 Enclosed AC-DC Switching Power Supply
Cost-effective, high efficiency power supply with universal AC/DC input
- Type: Enclosed Type Single Output
- Output Power: 36W
- Series: LM35-20B
- Part Number: LM35-20B15
- Mechanical Form: Enclosed
- IP Level: Non-Waterproof
- Output Voltage: 15V
- Output Current: 2.4A
Top Features:
- Universal 85 - 264VAC or 120 - 373VDC Input voltage
- Operating ambient temperature range: -30? to +70?
- Low standby power consumption, high efficiency
- High I/O isolation test voltage up to 4000VAC
LM35-20B15 is widely used in industrial, LED, street light control, security, telecommunications, and smart home applications. It offers excellent EMC performance and meets various safety and EMC standards.
Detailed Specifications:
- Input voltage range: 85-264VAC; 120-373VDC
- Inrush current (max.): Cold start, 45A at 230VAC
- Output voltage adjustable range: 13.5-18V
- Efficiency at 230VAC: 87%
- Max. capacitive load: 1000µF
- Input current (max.): 0.4A at 230VAC
- Short circuit protection: Hiccup, continuous, self-recovery
- Over-current protection: 110%-150% Io, self-recovery
- Withstand voltage: 300VAC
- Working temperature: -30 - 70°C
- Connection: Terminal block
- Dimension (LxWxH): 99 x 82 x 30 mm
- Weight: 180 gm
- Cooling Method: Free air convection
- Case Material: Metal (AL1100, SGCC)
- MTBF: >300000 Hrs
- Safety Class: CLASS I
- Safety standards: Meet IEC/EN/UL62368/EN60335/GB4943
- EMC standards: CISPR32/EN55032 CLASS B, IEC/EN61000-3-2 CLASS A, IEC/EN 61000-4-3 10V/m
- Certification: CE, CCC
- Warranty: 3 years
For more details or bulk pricing, contact our sales team directly at sales02@thansiv.com or +91-8095406416.
Images are for illustration only; actual product may vary.
