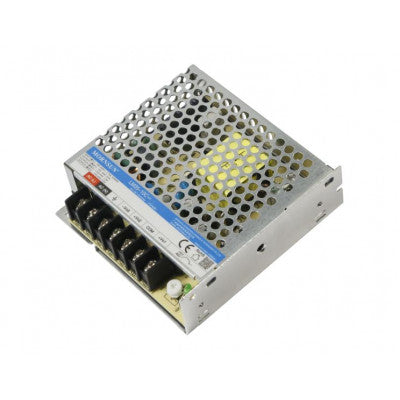

LM35-10C052412-05
Enclosed Type Triple Output Power Converter with High EMC Protection
- Type: Enclosed Type Triple Output
- Output Power: 36.5W
- Series: LM35-10C
- Part Number: LM35-10C052412-05
- Mechanical Form: Enclosed
- IP Level: Non-Waterproof
- Output Voltage: 5V, 24V, 12V
- Output Current: 2.5A, 0.5A, 1A
Top Features:
- Universal 85 - 264VAC or 120 - 373VDC Input voltage
- Operating ambient temperature range: -30°C to +70°C
- High efficiency, reliability, and long lifetime
- Output short circuit, over-current, over-voltage protection
LM35-10C052412-05 is designed to independently supply 3 different loads in the system, suitable for harsh environments with an ambient temperature range from -30°C to +70°C. It meets EMC immunity performance requirements of IEC61000 standard and emission standard CISPR32/EN55032, class B without external components, ensuring excellent EMC protection. The product also complies with IEC/EN/UL62368, EN60335, GB4943 safety standards. With integrated protection features, it offers a high-performance to low-cost ratio, making it ideal for industrial control equipment, instrumentation, smart home, and building equipment applications.
Detailed Specifications:
- Input voltage range: 85-264VAC; 120-373VDC
- Inrush current (max.): Cold start, 50A at 230VAC
- Output voltage adjustable range: 4.75-5.5V
- Working current range: 0.25-3.5A, 0.05-1A, 0.1-1A
- Efficiency at 230VAC: 81%
- Max. capacitive load: 2500µF, 470µF, 1000µF
- Input current (max.): 0.5A at 230VAC
- Short circuit protection: Hiccup, continuous, self-recovery
- Over-current protection: 110%-180% Io, self-recovery
- Withstand voltage: 300VAC
- Working temperature: -30 - 70°C
- Connection: Terminal block
- Dimension (LxWxH): 99 x 97 x 30 mm
- Weight: 210 gm
- Cooling Method: Free air convection
- Case Material: Metal (AL1100, SGCC)
- MTBF: >300000 Hrs
- Safety Class: CLASS I
- Safety standards: Meet IEC/EN/UL62368/EN60335/GB4943
- EMC standards: CISPR32/EN55032 CLASS B, IEC/EN61000-3-2 CLASS A, IEC/EN 61000-4-3 10V/m
- Certification: CE, RoHS
- Warranty: 3 years
*Images are for illustration only; actual product may vary.
