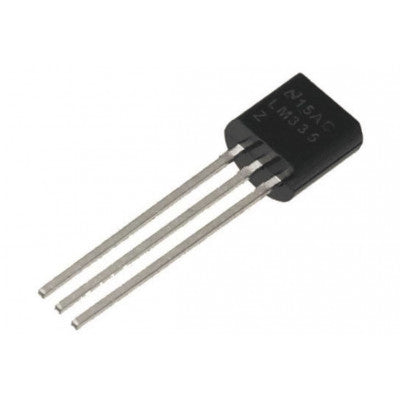

LM335 Precision Temperature Sensor
Precision temperature sensor with easy calibration and 10mV/°K breakdown voltage.
- Storage temperature range: -65 to +150
- Max Forward Current: 15mA
- Max Reverse Current: 10mA
- Max Continuous Operating free-air temperature range: -40 to +100 deg C
- Package Includes: 1 x LM335 - Temperature Sensor
Top Features:
- Directly calibrated in °K
- 1°C initial accuracy
- Operates from 450µA to 5mA
- Less than 1? dynamic impedance
The LM335 is a precision temperature sensor that operates as a 2-terminal Zener with a breakdown voltage directly proportional to the absolute temperature at 10mV/°K. It has a dynamic impedance of less than 1? and can operate within a current range of 450µA to 5mA without altering its characteristics.
Need more details or interested in bulk pricing? Reach out to our sales team directly - sales02@thansiv.com +91-8095406416
Images are for illustration only; actual product may vary.
