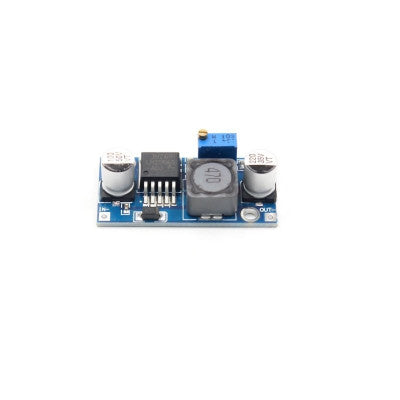

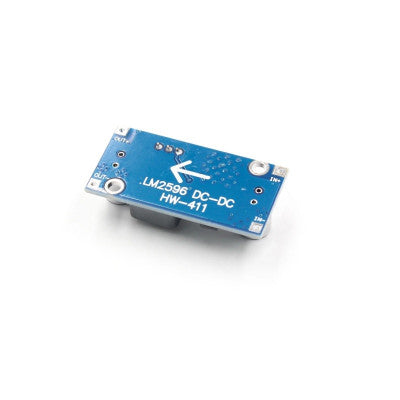

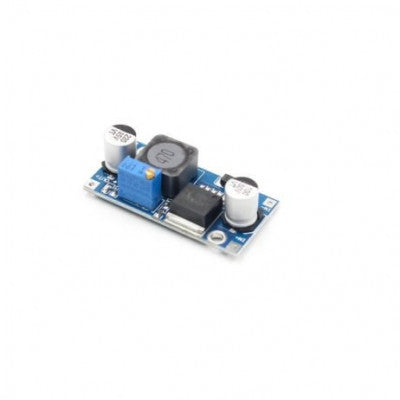

DC-DC Buck Converter Step Down Module LM2596 Power Supply
A high-efficiency step-down switching regulator for driving up to 3A loads.
- Input voltage: 3-40V
- Output voltage: 1.5-35V (Adjustable)
- Output current: Rated current is 2A, maximum 3A (Additional heatsink required)
- Module Properties: Non-isolated constant voltage module
- Rectification: Non-synchronous rectification
- Short circuit protection: Current limiting with recovery
Top Features:
- High precision potentiometer
- Switching frequency of 150kHz
- Internally compensated for simplified design
- Efficiency up to 92%
This LM2596 DC-DC buck converter step-down power module is designed to work with Freeduino UNO, other mainboards, and basic modules. It is recommended to add a heat sink when the output current exceeds 2.5A or output power is greater than 10W.
Operating at a switching frequency of 150 kHz, this module allows the use of smaller sized filter components compared to lower frequency regulators. The LM2596 series offers fixed output voltages of 3.3V, 5V, 12V, and an adjustable version.
Since the LM2596 is a switch-mode power supply, it provides higher efficiency than traditional linear regulators, especially with higher input voltages. The device is internally compensated to reduce the need for external components, simplifying power supply design.
* Images are for illustration only; actual product may vary.
