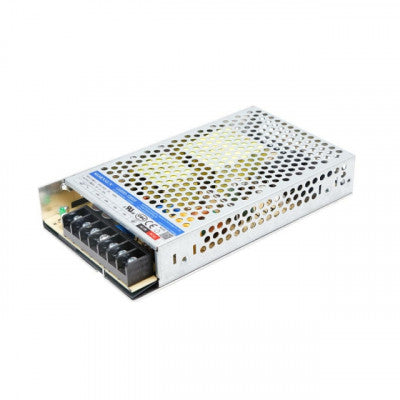

LM200-12B24 Enclosed AC-DC Switching Power Supply
Cost-effective power supply with high efficiency and reliability
- Type: Enclosed Type Single Output
- Output Power: 211.2W
- Series: LM200-12B
- Part Number: LM200-12B24
- Mechanical Form: Enclosed
- IP Level: Non-Waterproof
- Output Voltage: 24V
- Output Current: 8.8A
Top Features:
- Selectable AC input range: 90 ~ 132VAC/180 ~ 264VAC
- DC input range: 240 ~ 373VDC (Switch in position of 230)
- Ultra low standby power consumption: < 0.75W @230VAC
- Operating ambient temperature range: -30°C ~ +70°C
LM200-12B24 is widely used in industrial, LED, street light control, electricity, security, telecommunications, smart home applications. It offers excellent EMC performance and complies with IEC/EN61000-4, CISPR32/EN55032, IEC/UL/EN62368, EN60335, GB4943 standards.
Detailed Specifications:
- Input voltage range: 90-132VAC; 180-264VDC
- Inrush current (max.): Cold start, 80A at 230VAC
- Output voltage adjustable range: 21.6-28.8V
- Efficiency at 230VAC: 88.5%
- Max. capacitive load: 1500µF
- Input current (max.): 3A at 230VAC
- Short circuit protection: Hiccup, continuous, self-recovery
- Over-current protection: 110%-150% Io, self-recovery
Withstand voltage of 300VAC, operating altitude up to 5000m, and safety standards meeting IEC/EN/UL62368, EN60335, GB4943. The power supply has a compact size with 1U low profile and LED indicator for power on.
*Images are for illustration only; actual product may vary.
