LM100-10C052412-20
Enclosed Type Triple Output Power Converter with High EMC Protection
- Type: Enclosed Type Triple Output
- Output Power: 96W
- Series: LM100-10C
- Part Number: LM100-10C052412-20
- Mechanical Form: Enclosed
- IP Level: Non-Waterproof
- Output Voltage: 5V, 24V, 12V
- Output Current: 6A, 2A, 1.5A
Features
- Universal 90 - 264VAC or 120 - 373VDC Input voltage
- Operating ambient temperature range: -30? to +70?
- High efficiency, high reliability and long life
- LED indicator for power on
The LM100-10C052412-20 power converter is designed with 3 output versions to independently supply 3 different loads in the system. It can operate in harsh environments with an ambient temperature range from -30? to +70? without the need for additional heat dissipation. The product meets EMC immunity requirements of IEC61000 standard and emission standard CISPR32/EN55032, class B without external components, providing excellent EMC protection. It also complies with safety standards IEC/EN/UL62368, EN60335, GB4943. The converter integrates various protection features and offers a high-performance to low-cost ratio, making it an ideal power solution for industrial control equipment, instrumentation, smart home, and building equipment applications.
Detailed Specifications
- Input voltage range: 90-264VAC; 120-373VDC
- Inrush current (max.): Cold start, 50A at 230VAC
- Output voltage adjustable range: 4.75-5.5V
- Working current range: 0.6-8A, 0.2-2.5A, 0.15-2A
- Efficiency at 230VAC: 85%
- Max. capacitive load: 6000µF, 2000µF, 1500µF
- Input current (max.): 1.5A at 230VAC
- Short circuit protection: Hiccup, continuous, self-recovery
- Over-current protection: ?110% Io, self-recovery
- Withstand voltage: 300VAC
- Working temperature: -30 - 70°C
- Connection: Terminal block
- Dimension (LxWxH): 159 x 97 x 30 mm
- Weight: 435 gm
- Cooling Method: Free air convection
- Case Material: Metal (AL1100, SGCC)
- MTBF: >300000 Hrs
- Safety Class: CLASS I
- Safety standards: Meet IEC/EN/UL62368/EN60335/GB4943
- EMC standards: CISPR32/EN55032 CLASS B, IEC/EN61000-3-2 CLASS A, IEC/EN 61000-4-3 10V/m
- Certification: CE, RoHS
- Warranty: 3 years

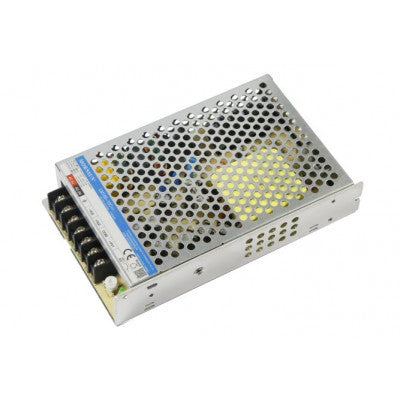

* Images are for illustration only; actual product may vary.
