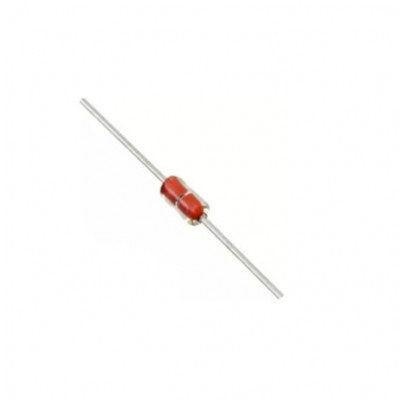

Linear 100K ohm NTC N3950 Thermistor 1% (Pack of 5)
High-quality, precision thermistors for temperature-sensitive applications.
- Spec name: Linear 100K ohm NTC N3950 1% (Pack of 5)
- Temperature Coefficient Type: NTC
- Thermal Time Constant: 10s
- Resistance: 100k
- Tolerance: 1%
- Maximum Power Rating: 75mW
- Maximum Operating Temperature: +150°C
- Minimum Operating Temperature: -80°C
- Dimensions (dia.): 2 mm
- Length: 30mm
- Application: Compensation, Control, Measurement, etc.
Features:
- NTC Temperature Coefficient
- 10s Thermal Time Constant
- 1% Tolerance
- 75mW Maximum Power Rating
100k Ohm NTC Thermistor (NTC-Negative Temperature Coefficient), these R-T curve (Resistance-Temperature) matched thermistors are small, high-quality, epoxy encapsulated, precision devices. These epoxy-coated interchangeable chip thermistors offer true interchangeability over wide temperature ranges, permitting the circuit designer to standardize circuitry. This eliminates the need to individually adjust circuits and allows the thermistors to be easily replaced without the need for re-calibration.
Packages Includes: 1 x Linear 100K ohm NTC N3950 1% (Pack of 5)
* Images are for illustration only; actual product may vary.
