LI60-20B12PR2 AC-DC Converter
A cost-effective, energy efficient solution for standard DIN-rail mounting.
- Type: DIN Rail Single Output
- Output Power: 54W
- Series: LI60-20B
- Part Number: LI60-20B12PR2
- Mount: DIN-Rail
- IP Level: Non-Waterproof
- Output Voltage: 12V
- Output Current: 4.5A
Features:
- Universal 85 - 264VAC or 120 - 370VDC Input voltage
- Accepts AC or DC input (dual-use of same terminal)
- Operating ambient temperature range: -40? to +70?
- High I/O isolation test voltage up to 4000VAC
These light weight AC-DC converters have an extremely compact design for space saving and are ideal for applications such as industrial control equipment machinery and all kinds of applications in a harsh environment.
Detailed Specifications:
- Input voltage range: 85-264VAC; 120-370VDC
- Inrush current (max.): Cold start, 60A at 230VAC
- Output voltage adjustable range: 10.8-13.8V
- Efficiency at 230VAC: 88%
- Max. capacitive load: 10000µF
- Input current (max.): 0.8A at 230VAC
- Short circuit protection: Hiccup, continuous, self-recovery
- Over-current protection: ?120% Io, self-recovery
- Withstand voltage: 300VAC
- Working temperature: -40 - 70°C
- Connection: Terminal block
- Package dimensions: 92.66 x 52 x 58 mm
- Weight: 175 gm
- Cooling method: Free air convection
- Case material: Plastic, heat-resistant (UL94V-0)
- MTBF: >300000 Hrs
- Safety class: CLASS II
- Safety standards: UL62368/EN62368/IEC62368
- EMC standards: CISPR32/EN55032 CLASS B, CISPR32/EN55032 CLASS B, IEC/EN61000-4-3 10V/m
- Certification: CE, RoHS
- Warranty: 3 years

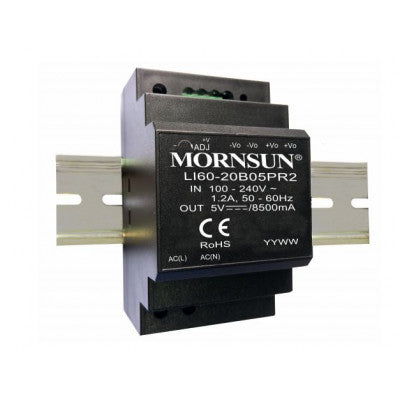

*Images are for illustration only; actual product may vary.
