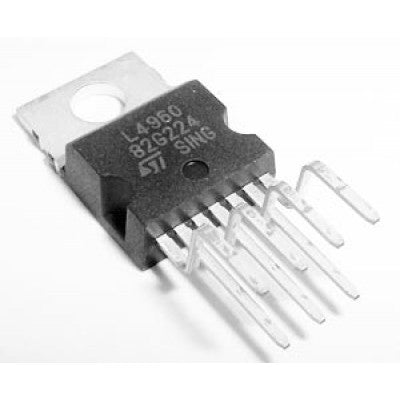

L4960 Monolithic Power Switching Regulator
A versatile power switching regulator for various applications.
- Output Current: 2.5A
- Output Voltage Range: 5.1V to 40V
- On-Chip Reference: Precise (± 2%)
- Switching Frequency: High
- Efficiency: Up to 90%
- External Components: Very Few Required
-
Special Features:
- Current Limiting
- Soft Start
- Thermal Protection
- 0 to 100% Duty Cycle
Specifications:
- Input Voltage: 50V
- Input to Output Voltage Difference: 50V
- Negative Output DC Voltage: -1V
- Negative Output Peak Voltage: -5V
- Voltage at Pin 3 and 6: 5.5V
- Voltage at Pin 2: 7V
- Pin 3 Sink Current: 1mA
- Pin 5 Source Current: 20mA
- Power Dissipation: 15W at Tcase ? 90°C
- Junction and Storage Temperature: -40 to 150°C
The L4960 is housed in a Heptawatt plastic power package and offers efficient operation at switching frequencies up to 150KHz. This regulator is designed for continuous operation mode with a wide voltage range from 5V to 40V, making it suitable for various electronic projects.
