Flame Sensor Module
Detect flames in the 760-1100nm range with adjustable sensitivity.
- Operating Voltage (VDC): 3.3 ~ 5
- Spectrum range: 760nm ~ 1100nm
- Detection Angle(°): 0 to 60
- Operating Temperature (C): -25 to 85
- Length (mm): 35.5
- Width (mm): 15.2
- Height (mm): 14
- Weight (gm): 3
Top Features:
- High Photo Sensitivity
- Fast Response Time
- Adjustable Sensitivity
- Detects flames in 760-1100nm range

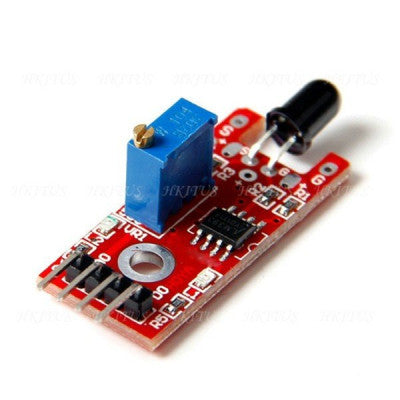

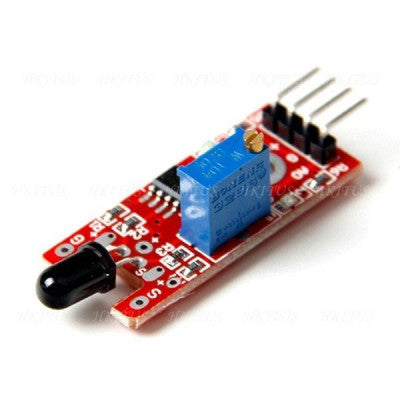

The Flame Sensor Module can detect flames in the 760-1100 nanometer wavelength range. Small flames like a lighter flame can be detected at roughly 0.8m. The detection angle is roughly 60 degrees and the sensor is particularly sensitive to the flame spectrum. An on-board LM393 op-amp is used as a comparator to adjust the sensitivity level. The sensor has a digital and analog output and sensitivity can be adjusted via the blue potentiometer.

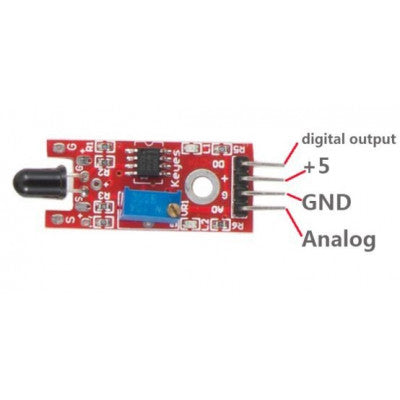

This Flame Sensor Module is used to detect fire/flame source or other light sources of the wavelength in the range of 760nm 1100 nm. It is based on the YG1006 sensor which is a high speed and high sensitive NPN silicon phototransistor. Due to its black epoxy, the sensor is sensitive to infrared radiation. The sensor can be a great addition in a firefighting robot, it can be used as a robot eyes to find the fire source. When the sensor detects flame the Signal LED will light up and the D0 pin goes LOW. The module has 2 outputs: Analogue, which gives a real-time voltage output signal on thermal resistance, and digital which allows temperature thresholds to be set via a potentiometer.
Package Includes: 1 x KY-026 Flame Sensor Module
* Images are for illustration only; actual product may vary.
